DAM-7W2S-A197

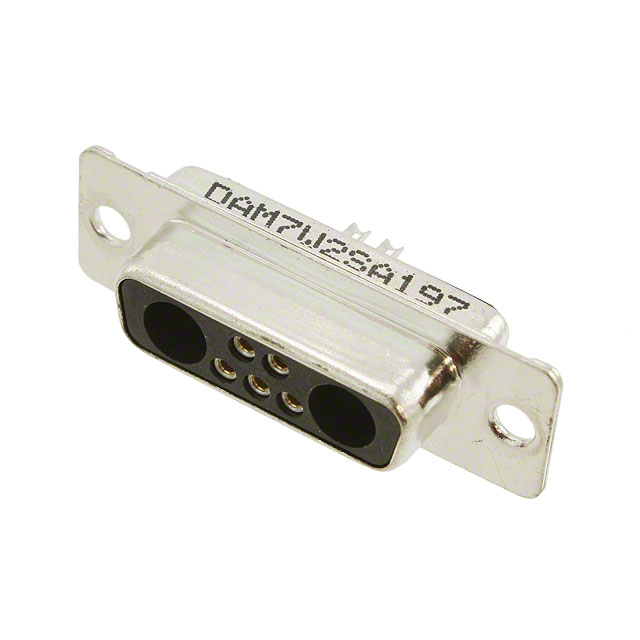

DAM-7W2S-A197图片1
DAM-7W2S-A197图片2
DAM-7W2S-A197图片3
DAM-7W2S-A197概述

Conn; D-Sub; Hybrid; Socket; 5POS Sz 20W/2 Sz 8 empty; Soldr; 26-8AWG; Tin; Combo D

Combination D Subminiature connectors offer the advantages of an industry standard shield I/O interconnect, with the flexibility of a customized special, designed for any application.

This connector system is ideal for applications that require optimization of space while improving overall shielding. Combo D® accomplishes this by combining multiple interconnect types into one fully shielded product, decreasing the number I/O interfaces and reducing the possibility of EMI/RFI leakage.


DAM-7W2S-A197中文资料参数规格
技术参数

触点数 5

额定电流 7.5 A

排数 2

工作温度Max 125 ℃

工作温度Min -55 ℃

物理参数

颜色 Black

工作温度 -55℃ ~ 125℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买DAM-7W2S-A197
型号: DAM-7W2S-A197
制造商: ITT Corporation ITT电子
描述:Conn; D-Sub; Hybrid; Socket; 5POS Sz 20W/2 Sz 8 empty; Soldr; 26-8AWG; Tin; Combo D
