4路,TTL输入

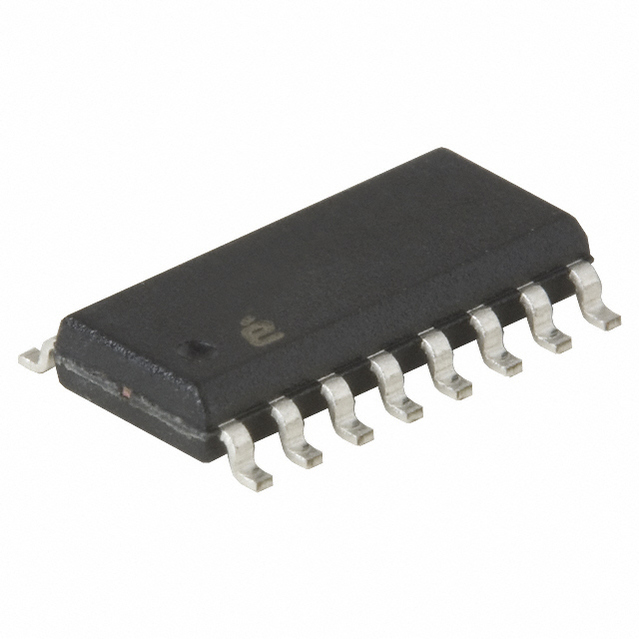

The DG444 and DG445 monolithic CMOS analog switches are drop-in replacements for the popular DG211 and DG212 series devices. They include four independent single pole single throw SPST analog switches and TTL and CMOS compatible digital inputs.
These switches feature lower analog ON resistance <85Ω and faster switch time tON <250ns compared to the DG211 and DG212. Charge injection has been reduced, simplifying sample and hold applications.
Features
• ON Resistance Max. . . . . . . . . . . . . . . . . . . . . . . . . 85Ω
• Low Power Consumption PD . . . . . . . . . . . . . . . <35μW
• Fast Switching Action
\- tON Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250ns
\- tOFF Max, DG444 . . . . . . . . . . . . . . . . . . . . . . . 140ns
• Low Charge Injection
• Upgrade from DG211, DG212
• TTL, CMOS Compatible
• Single or Split Supply Operation
• Pb-Free Plus Anneal Available RoHS Compliant
Applications
• Audio Switching
• Battery Operated Systems
• Data Acquisition
• Hi-Rel Systems
• Sample and Hold Circuits
• Communication Systems
• Automatic Test Equipment
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DG444DY Intersil 英特矽尔 | 当前型号 | 当前型号 |
DG444DYZ 英特矽尔 | 类似代替 | DG444DY和DG444DYZ的区别 |
ADG444ABRZ 亚德诺 | 类似代替 | DG444DY和ADG444ABRZ的区别 |
ADG444ABR 亚德诺 | 类似代替 | DG444DY和ADG444ABR的区别 |
