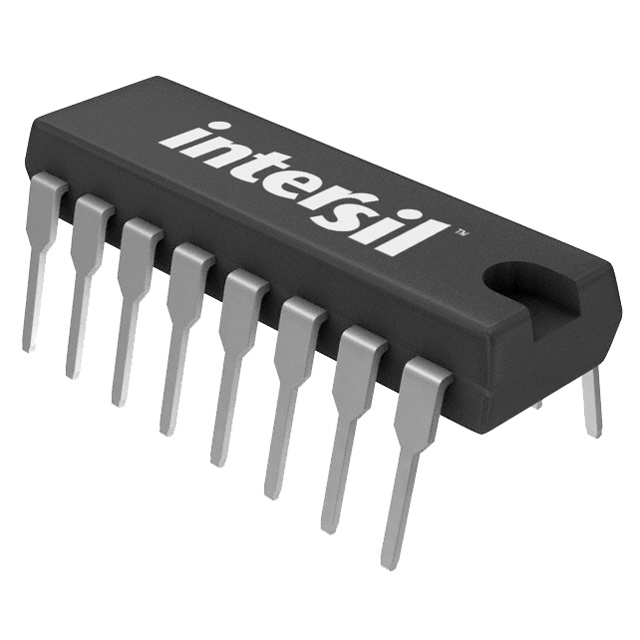

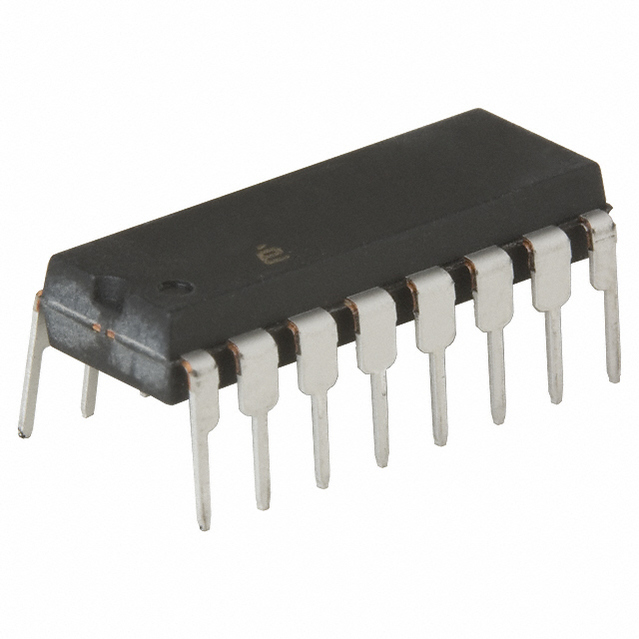

DG508ACJ

CMOS模拟多路复用器 CMOS Analog Multiplexers

The DG506A, DG507A, DG508A and DG509A are CMOS Monolithic 16-Channel/Dual 8-Channel and 8-Channel/Dual 4-Channel Analog Multiplexers, which can also be used as demultiplexers. An enable input is provided. When the enable input is high, a channel is selected by the address inputs, and when low, all channels are off.

Features

• Low Power Consumption

• TTL and CMOS-Compatible Address and Enable Inputs

• 44V Maximum Power Supply Rating

• High Latch-Up Immunity

• Break-Before-Make Switching

• Alternate Source

Applications

• Data Acquisition Systems

• Communication Systems

• Signal Multiplexing/Demultiplexing

• Audio Signal Multiplexing
