33pF 6.3kV SL Φ9.0mm

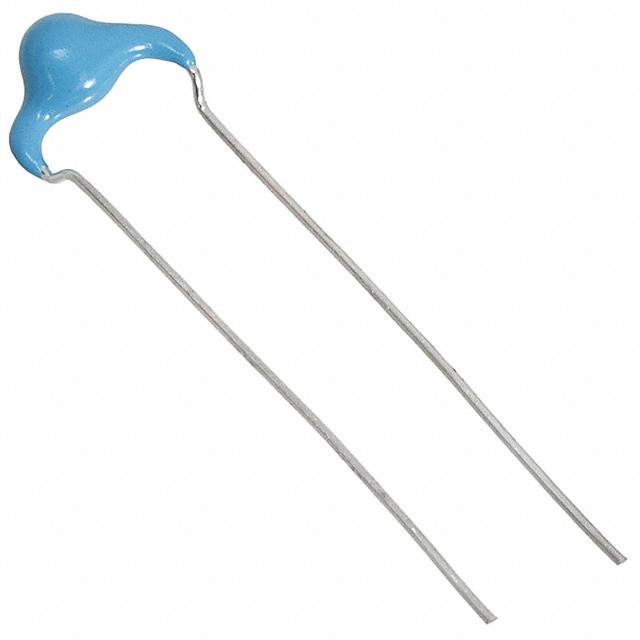

The high frequency capacitor can provide you with a non-polarized, low-cost solution to your circuit. It can withstand a voltage of 6300 VAC. This high frequency capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 5%. Its capacitance value is 33pF. This part has a lead diameter of 0.6 mm and a pitch of 7.5 mm. This product is 6Max mm deep. The DEF1XLH330JA3B high frequency capacitor has a radial termination style.
额定电压DC 6.3 kV
电容 33 pF
容差 ±5 %
电介质特性 SL
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 6300 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 7.5 mm
长度 9 mm
宽度 6 mm
高度 6.0 mm
直径 Φ9.0mm
封装 Radial, Disc
引脚间距 7.5 mm
厚度 6 mm
材质 SL
工作温度 -25℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DEF1XLH330JA3B muRata 村田 | 当前型号 | 当前型号 |
DEF1XLH330JJ3B 村田 | 完全替代 | DEF1XLH330JA3B和DEF1XLH330JJ3B的区别 |
DEC1X3J330JA3B 村田 | 类似代替 | DEF1XLH330JA3B和DEC1X3J330JA3B的区别 |
DEF1XLH330JN3A 村田 | 类似代替 | DEF1XLH330JA3B和DEF1XLH330JN3A的区别 |
