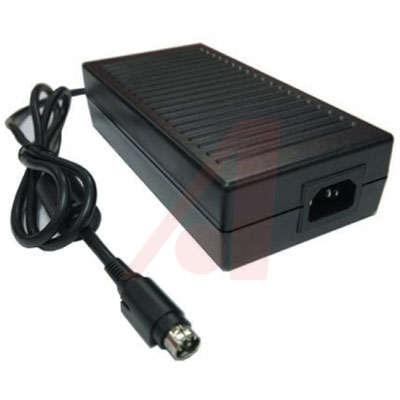

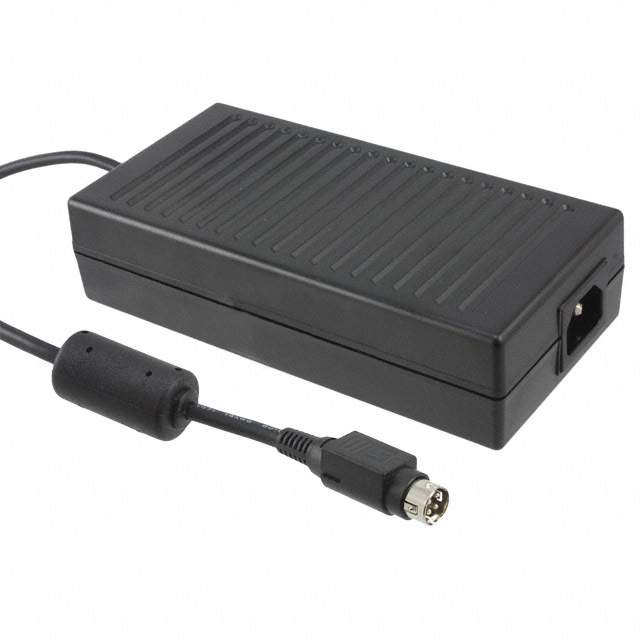

TDK LAMBDA DT150PW480C 交流/直流电源, 主插头单独出售, 90 V, 264 V, 150 W, 48 V, 3.13 A
48V AC/DC 外部 台式(类 I) 适配器 缆线(单独出售) 输入
得捷:
AC/DC DESKTOP ADAPTER 48V 150W
贸泽:
Desktop AC Adapters 150W 48V 3.13A
e络盟:
TDK LAMBDA DT150PW480C 交流/直流电源, 主插头单独出售, 90 V, 264 V, 150 W, 48 V, 3.13 A
艾睿:
You can charge or power your electronic device using the DT150PW480C portable external plug-in adapter from TDK-Lambda. This part&s;s single output can handle a current up to 3.13 A. This part has an input voltage of 90 to 264 V. It has a fixed output that has a voltage of 48 V and maximum output power of 150 W. This part has a temperature range of 0 °C to 40 °C.
Allied Electronics:
Power Supply; AC-DC; 48V@3.13A; 90-264V In; Enclosed; Desktop; PFC; DT-C Series
Chip1Stop:
Plug-In Adapter Single-OUT 48V 3.13A 150W
Verical:
Plug-In Adapter Single-OUT 48V 3.13A 150W
额定功率 150 W
输出接口数 1
输出电压 48 V
输出电流 3.13 A
输出功率 150 W
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电流Max 3.13 A
输入电流Min 2.5 A
输出功率Max 150 W
额定功率Max 150 W
工作温度Max 40 ℃
工作温度Min 0 ℃
输入电压AC 90V ~ 264V
输入电压 90VAC ~ 264VAC
高度 44 mm
电源线长度 1.05 m
重量 771.1 g
工作温度 0℃ ~ 40℃
产品生命周期 Discontinued at Digi-Key
包装方式 Bulk
制造应用 Power Management, Test & Measurement, Industrial, Communications & Networking, ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DT150PW480C TDK 东电化 | 当前型号 | 当前型号 |
DT150PW480D 东电化 | 类似代替 | DT150PW480C和DT150PW480D的区别 |
