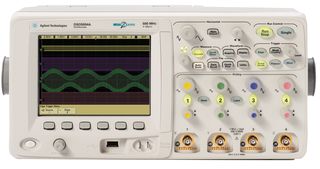

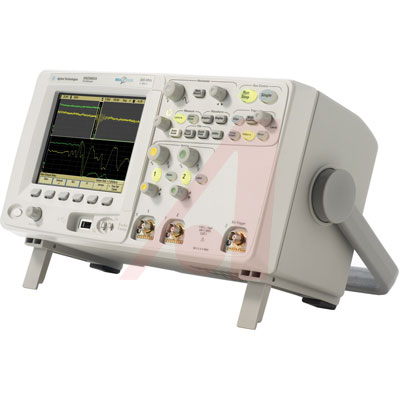

Oscilloscope, 500MHz, 2Channel, 4GSPS
**Capture Events Other Oscilloscopes miss - The next Generation of Portable Oscilloscopes**
Engineers need tools capable of handling today"s design challenges. The new 5000 Series oscilloscopes tackle these needs with responsive deep memory, a high-definition display system, and a superior ability to capture signal transients. . "s patented deep memory and fast waveform update rate help you find the bugs that you don"t know about. Capture Events Other Oscilloscopes miss - The next Generation of Portable Oscilloscopes
Engineers need tools capable of handling today"s design challenges. The new 5000 Series oscilloscopes tackle these needs with responsive deep memory, a high-definition display system, and a superior ability to capture signal transients. . Keysight Technologies"s patented deep memory and fast waveform update rate help you find the bugs that you don"t know about.
**High resolution mode**
Offers up to 12 bits of veritcal resolution in real-time, single-shot mode. This is accomplished by serially filtering sequential data points and mapping the filtered results to the display when operating at base settings greater than 10-?s/div.
**Waveform math with FFT**
Analysis functions include subtract, multiply, integrate, and differentiate, as well as Fast Fourier Transforms FFT.
**Peak detect**
250-ps on 500-MHz models, 500-ps on 300-MHz models and 1-ns on 100-MHz models helps you find narrow glitches.
**5-digit hardware counter**
Measures frequency up to the bandwidth of the scope.
**Trig Out**
Provides an easy way to synchronize your scope to other instruments
**Autoscale**
Displays all active signals, and automatically sets the vertical, horizontal and trigger controls. 23 automatic measurements with QuickMeas Pressing [QuickMeas] brings up the last four measurements selected. Cursors automatically track the most recently selected measurement
**HDTV Trigger
**The 5000 Series supports analog HDTV/EDTV triggering for standards like 1080i, 1080p, 720p and 480p as well as standard video triggering on any line within a field, all lines, all fields, odd or even fields for NTSC, SECAM, PAL and PAL-M video signals.
**Features:**
* Bandwidth 500 MHz
* Sample rate:
: 4 GSa/sec half channel1, 2 GSa/sec each channel
* Equivalent-time sample rate 400 GSa/s when real-time mode is turned off
* Display Color, 1024 x 768 6.3" XGA LCD with 265 intensity levels
* Memory 1 Mpts max, shared between chaels
* MegaZoom III memory and display technology
* Update Rate 100,000 waveforms per second
* Vertical sensitivity 2 mV/div to 5 V/div
* Max input voltage CAT I 300 Vrms 400 Vpk Transient overvoltage 1.6 kVpk CAT II 100 Vrms 400 Vpk
* Input impedance 10 M? ± 1% at 12 pF or 50? ± 1.5% selectable
* Timebase Range:
DSO5052A: 1 nsec/div to 50 sec/div
Resolution 2.5 psec
* Timebase accuracy 25 ppm
* Display mode Main, delayed, XY and roll
* Z Blanking: 1.4 V blanks trace use external trigger on DSO5052A
* Triggering Edge, Pulse width, Pattern, TV Composite and HDTV/EDTV, Duration, Sequence
* Connectivity: USB 3 ports, LAN, GPIB
