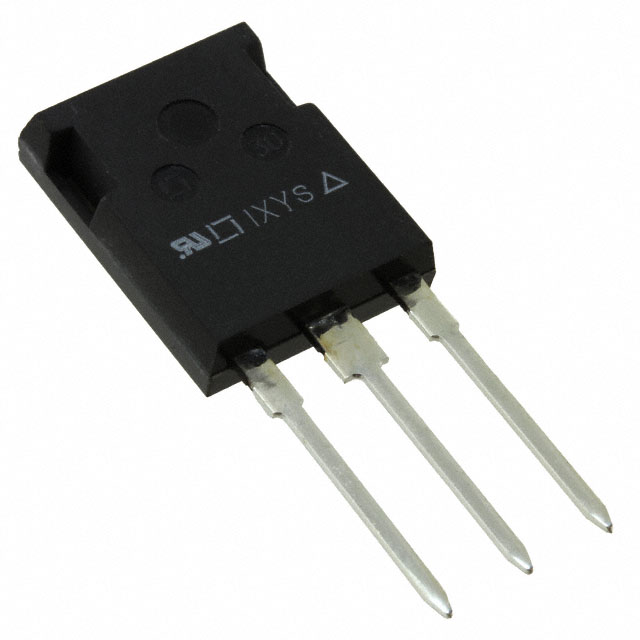

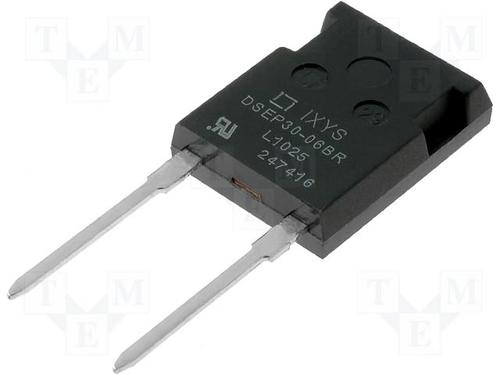

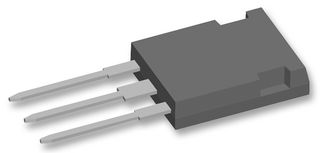

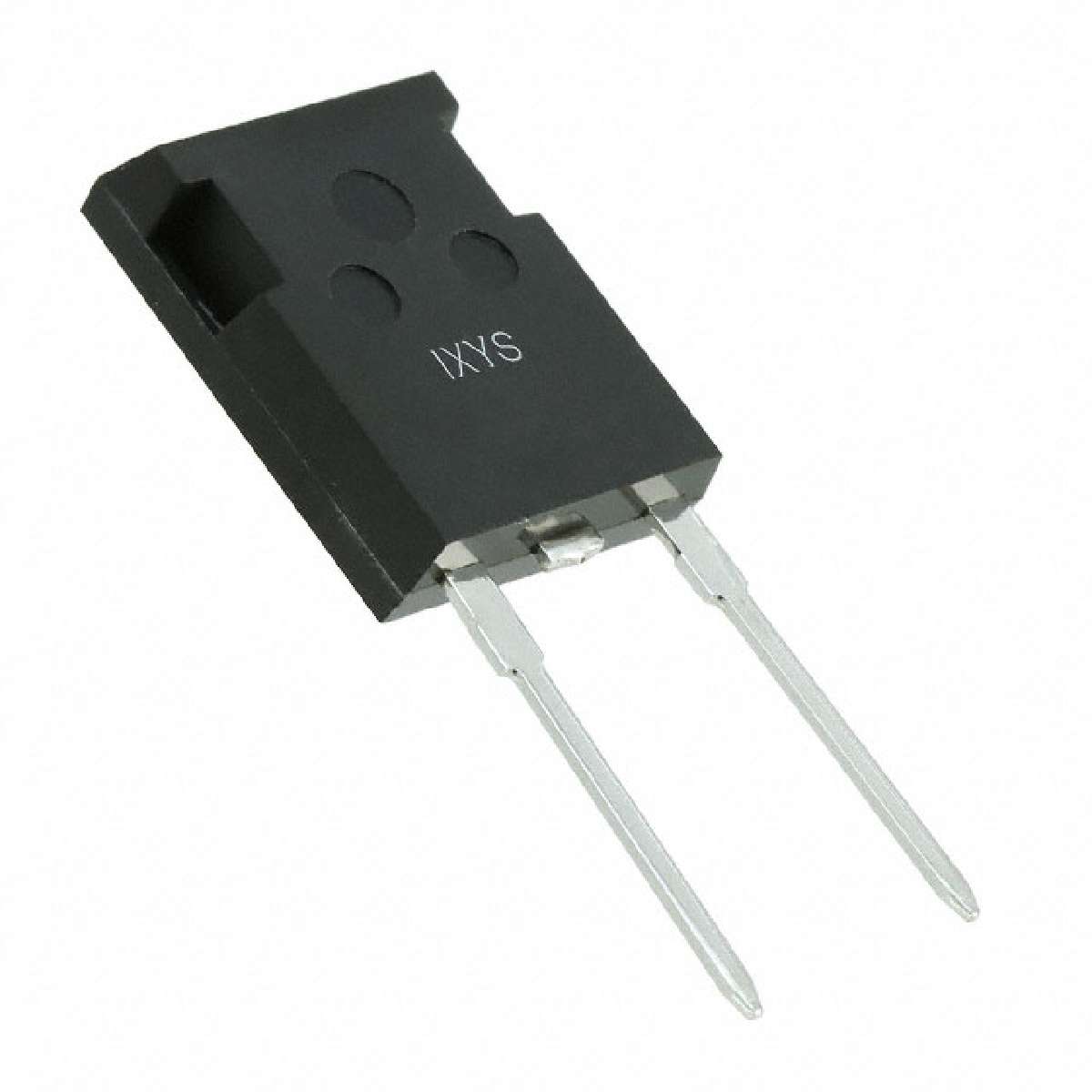

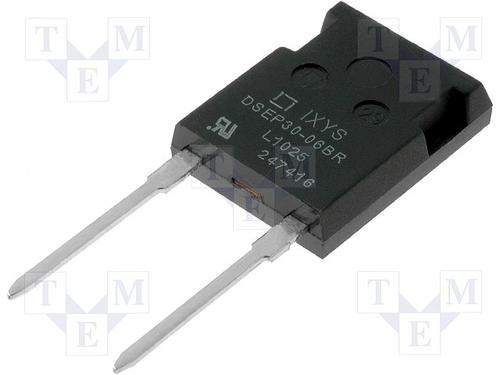

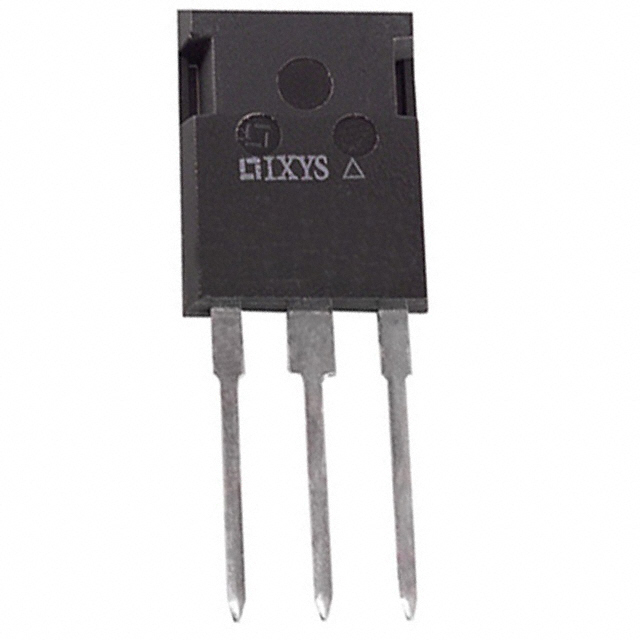

DSEP30-06BR

IXYS SEMICONDUCTOR  DSEP30-06BR  快速/超快功率二极管, 单, 600 V, 30 A, 2.51 V, 30 ns, 250 A

The is a HiPerFRED™ Epitaxial Diode with soft-recovery. It features low IRM reduces power dissipation within the diode and turn-on loss in the commutating switch. It is used as anti-parallel diode for high frequency switching devices, anti-saturation diode, snubber diode, free-wheeling diode in converters, rectifiers in switch mode power supplies SMPS, inductive heating and melting, uninterruptible power supplies UPS and ultrasonic cleaners and welders.

.

International standard package

.

Planar passivated chips

.

Very short recovery time

.

Extremely low switching losses

.

Low IRM-values

.

UL94V-0 Flammability rating

.

Avalanche voltage rated for reliable operation

.

Soft reverse recovery for low EMI/RFI
