DEMO9S08SE8

NXP  DEMO9S08SE8  演示电路板, HCS08, MC9S08SE8, 电源输入选择跳线, RS-232串行端口

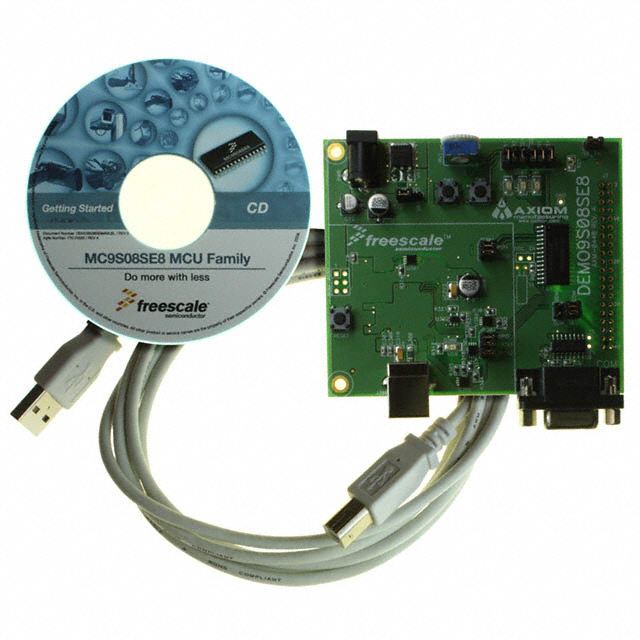

The 是一个评估电路板 用于the MC9S08SE8微控制器. 开发 of应用is quick和easy with the集成 USB-BDM, sample 软件工具,和examples. An optional BDM_PORT端口 is also provided to allow use of a BDM_PORT cable. A 40-pin 连接器 allows connecting the DEMO9S08SE8电路板 to an expanded 评估 environment.

.

集成USB-BDM

.

RS-232串行端口和DB9连接器

.

DB9 串行连接器

.

2.0mm 圆柱式连接器

.

Power input selection jumper

.

Three push switches, two user, one reset

.

Three LED indicators, two user, one VDD

.

32pin MCU I/O connector

.

2 mm barrel connector

.

DB9 serial connector

ESD prevention measures should be used when handling this product. ESD damage is not a warranty repair item.
