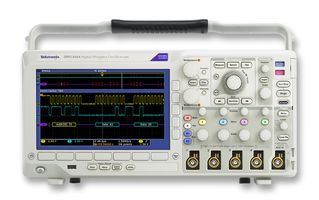

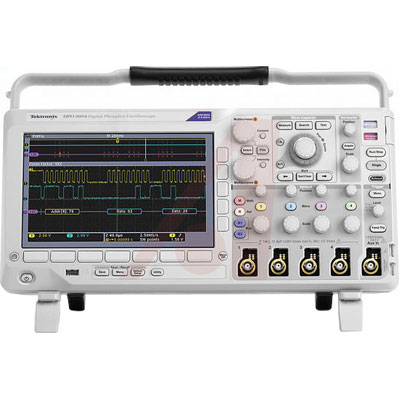

DPO3034

Oscilloscope, 4Channel, 300MHz, 2.5GSPS, 5 Mpts, 1.17ns

The Mixed Signal Oscilloscope provides the performance you need for many of today"s mainstream applications. With automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, the DPO3034 provides the feature-rich tools you need to simplify and speed debug of your complex design.

.

5 Megapoint Record Length on All Channels

.

>50,000 wfm/s Maximum Waveform Capture Rate

.

Suite of Advanced Triggers

.

Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data

.

29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis

.

TekVPI® Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units

.

9 in. 229 mm WVGA Widescreen colour Display

.

Small Footprint and Lightweight - Only 5.8 in. 147 mm deep and 9 lb. 4 kg

.

USB 2.0 Host Port on Front and Rear Panel for Data Storage, Printing, and Connecting a USB Keyboard

.

USB 2.0 Device Port on Rear for PC Connection or Direct Printing to a PictBridge®-compatible Printer

.

10/100 Ethernet Port and Video Out Port to Export Oscilloscope Display to a Monitor or Projector

.

Automated Serial Triggering, Decode, and Search Options

.

Automated Triggering, Decode, and Search on Parallel Buses

.

Multichannel Setup and Hold Triggering

.

MagniVu™ High-speed Acquisition Provides 121.2 ps Fine Timing Resolution on Digital Channels
