DL1/3N概述

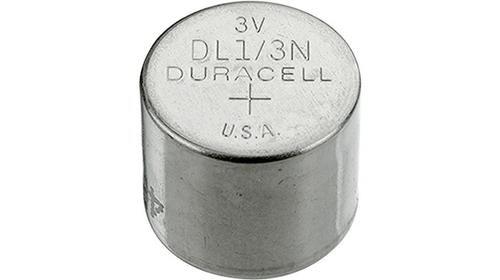

DURACELL DL1/3N Battery, Single Cell, Lithium Manganese Dioxide, 160 mAh, 3.1V, 1/3N, Pressure Contact, 11.6mm

The from is a non rechargeable lithium manganese dioxide battery with raised negative and flat positive terminals.

.
IEC code of battery is CR11108
.
NEDA code of battery is 5008LC
.
Available in 1/3N standard size
.
Nominal battery voltage of 3.1V
.
Nominal capacity of 160mAh
.
Minimum life of 62Hrs on 1Kohm to 1.4V
.
Battery weight is 10g
DL1/3N中文资料参数规格
技术参数

输出电压 3.00 V

封装参数

封装 200

外形尺寸

高度 10.8 mm

封装 200

物理参数

重量 10 g

其他

产品生命周期 Active

制造应用 Power Management, Consumer Electronics, Industrial, Portable Devices

符合标准

RoHS标准 Non-Compliant

REACH SVHC标准 Contains SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买DL1/3N
型号: DL1/3N
制造商: Duracell
描述:DURACELL DL1/3N Battery, Single Cell, Lithium Manganese Dioxide, 160 mAh, 3.1V, 1/3N, Pressure Contact, 11.6mm
替代型号DL1/3N
型号/品牌 代替类型 替代型号对比

DL1/3N

Duracell

当前型号

当前型号

6131201501

Varta

类似代替

DL1/3N和6131201501的区别
