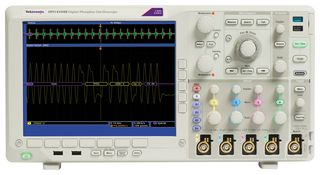

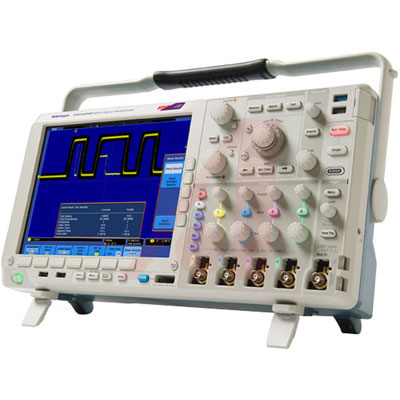

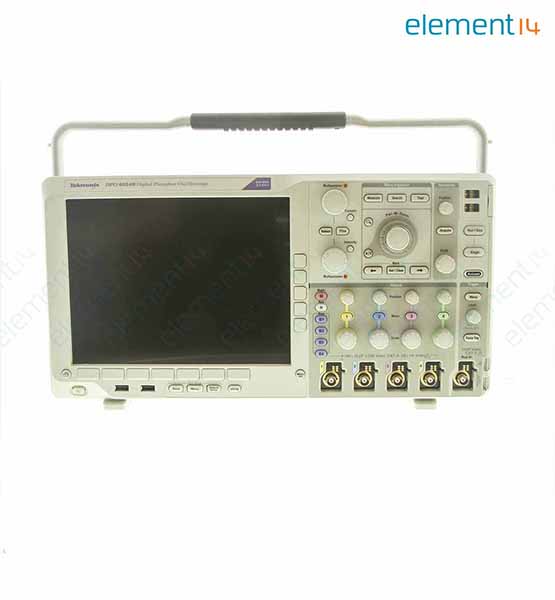

DPO4054B

台式示波器 Digital Oscilloscope 500MHz; 2.5GS/s; 4CH

The Mixed Signal Oscilloscope delivers the performance you need to see fast-changing signal details. With automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, this oscilloscope provides the feature-rich tools you need to simplify and speed debug of your complex design.

.

20 Megapoint Record Length on All Channels

.

>50,000 wfm/s Maximum Waveform Capture Rate

.

Passive Voltage Probes with Less than 4 pF Capacitive Loading and 500MHz or 1GHz analogue Bandwidth

.

Suite of Advanced Triggers

.

Wave Inspector® Controls provide Easy Navigation and Automated Search of Waveform Data

.

41 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis

.

TekVPI® Interface supports Active, Differential, and Current Probes for Automatic Scaling and Units

.

10.4 in. 264 mm Bright XGA colour Display

.

Small Footprint and Lightweight - Only 5.8 in. 147 mm deep and 11 lb. 5 kg

.

USB 2.0 Host Ports on Front and Rear for Data Storage, Printing, and Connecting a USB Keyboard

.

USB 2.0 Device Port on Rear for PC Connection or Direct Printing to a PictBridge®-compatible Printer

.

Integrated 10/100/1000BASE-T Ethernet Port and Video Out Port to Export the Oscilloscope Display

.

Automated Serial Triggering, Decode, and Search Options

.

Automated Triggering, Decode, and Search on Parallel Buses

.

Per-channel Threshold Settings

.

Multichannel Setup and Hold Triggering

.

MagniVu™ High-speed Acquisition Provides 60.6 ps Fine Timing Resolution on Digital Channels
