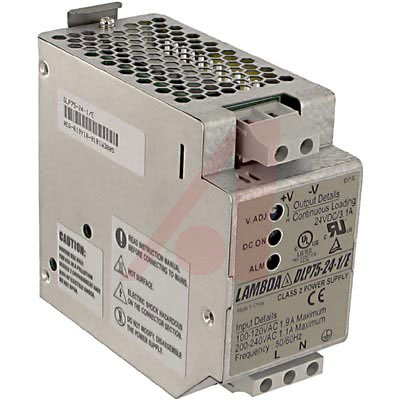

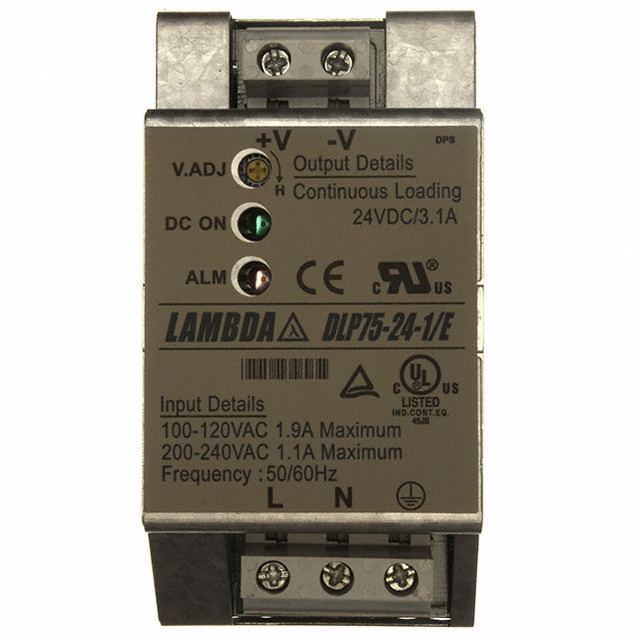

AC-DC Power Supply Single-OUT 24V 3.1A 75W
* Universal/Auto Select AC Input
* Convection Cooled from –10°C Up to +60°C or +70°C
* Active Power Factor Correction PFC
* Input Transient Protection IEC61000-4
* Semi F47 Compliant DLP180 and 240 Models
* UL508 Listed
* Meets NEC Class 2
* Class B Conducted and Radiated EMI
* UL/EN60950-1 and CE Mark Safety Approvals
得捷:
AC/DC CONVERTER 24V 75W
艾睿:
AC/DC Power Supply Single-OUT 24V 3.1A 75W
Allied Electronics:
Power Supply; AC-DC; 24V; 3.1A; 85-132/170-265V In; Enclosed; DIN Rail; PFC; DLP Series
Verical:
AC/DC Power Supply Single-OUT 24V 3.1A 75W
频率 47Hz ~ 63Hz
额定电流 3.1 A
额定功率 75 W
输出接口数 1
输出电压 24 V
输出电流 3.1 A
输出功率 74 W
隔离电压 3 kV
输入电压AC Max 265 V
输入电压AC Min 85 V
输出电流Max 3.1 A
输入电流Min 1.7 A
输出功率Max 75 W
工作温度Max 60 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 132VAC, 170VAC ~ 265VAC
安装方式 DIN Rail
长度 1.96 in
宽度 3.8 in
高度 4.33 in
工作温度 -10℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
