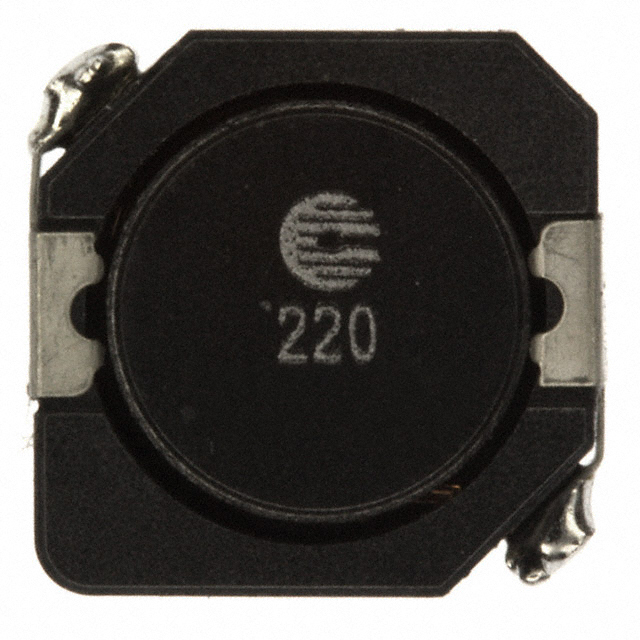

COILTRONICS DR1040-220-R 表面贴装功率电感器, DR1040系列, 22 µH, ± 30%, 屏蔽, 0.073 ohm, 2.5 A
**Features:
**
* 125°C Maximum Total Temperature Operation
* Low Profile Surface Mount Inductor
* Current Range from 10 to 0.52 Amps
* Frequency Range Up to 1 MHz
* Ferrite Core Material**
Applications:
**
* Notebook Power, Portable Devices**
**
* Wireless Modems, ADSL Line Cards
* Point of Load Power Supplies
* Battery Chargers, Video Cards
* MP3 Player, PDA"s, DVD Players
* LED Driver for Notebook Computer
* Navigation System, LCD Backlighting
* Buck, Boost or Forward Inductor
额定电流 2.9 A
容差 ±30 %
电感 22 µH
电感公差 ±30 %
测试频率 100 kHz
电阻DC） ≤73 mΩ
额定电流DC 2.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.073 Ω
封装 Non Standard
长度 10.5 mm
宽度 10.3 mm
高度 4 mm
封装 Non Standard
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DR1040-220-R Cooper Bussmann 库柏 | 当前型号 | 当前型号 |
