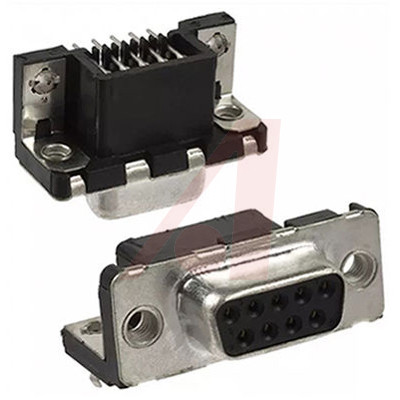

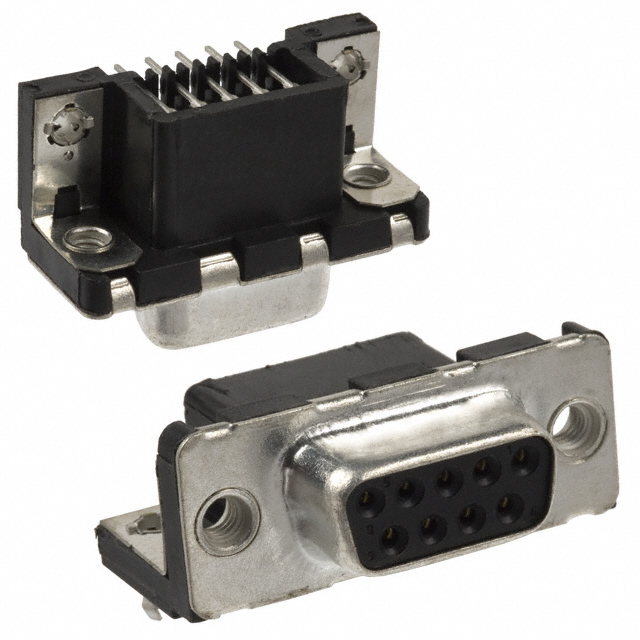

AMPHENOL FCI D09S33E4GX00LF 连接器, D-SUB, 标准型, 母, 9路
FCI"s D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Subminiature connectors are one of the most popular Input — Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer, Industrial, military, Instrumentation and Medical. Since many years FCI has been offering a wide range of D-Subminiature connectors to meet various design requirements including those in harsh environment.
触点数 9
极性 Female
触点电镀 Gold
额定电流 5 A
排数 2
易燃性等级 UL 94 V-0
针脚数 9
额定电压 300 V
工作电压Max 300 VAC
安装方式 Through Hole
引脚间距 2.74 mm
长度 30.81 mm
宽度 18.77 mm
高度 12.58 mm
引脚间距 2.74 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
D09S33E4GX00LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
FCE17E09SA490 安费诺 | 类似代替 | D09S33E4GX00LF和FCE17E09SA490的区别 |
FCE17-E09SA-490 安费诺 | 类似代替 | D09S33E4GX00LF和FCE17-E09SA-490的区别 |
5747844-4 泰科 | 功能相似 | D09S33E4GX00LF和5747844-4的区别 |
