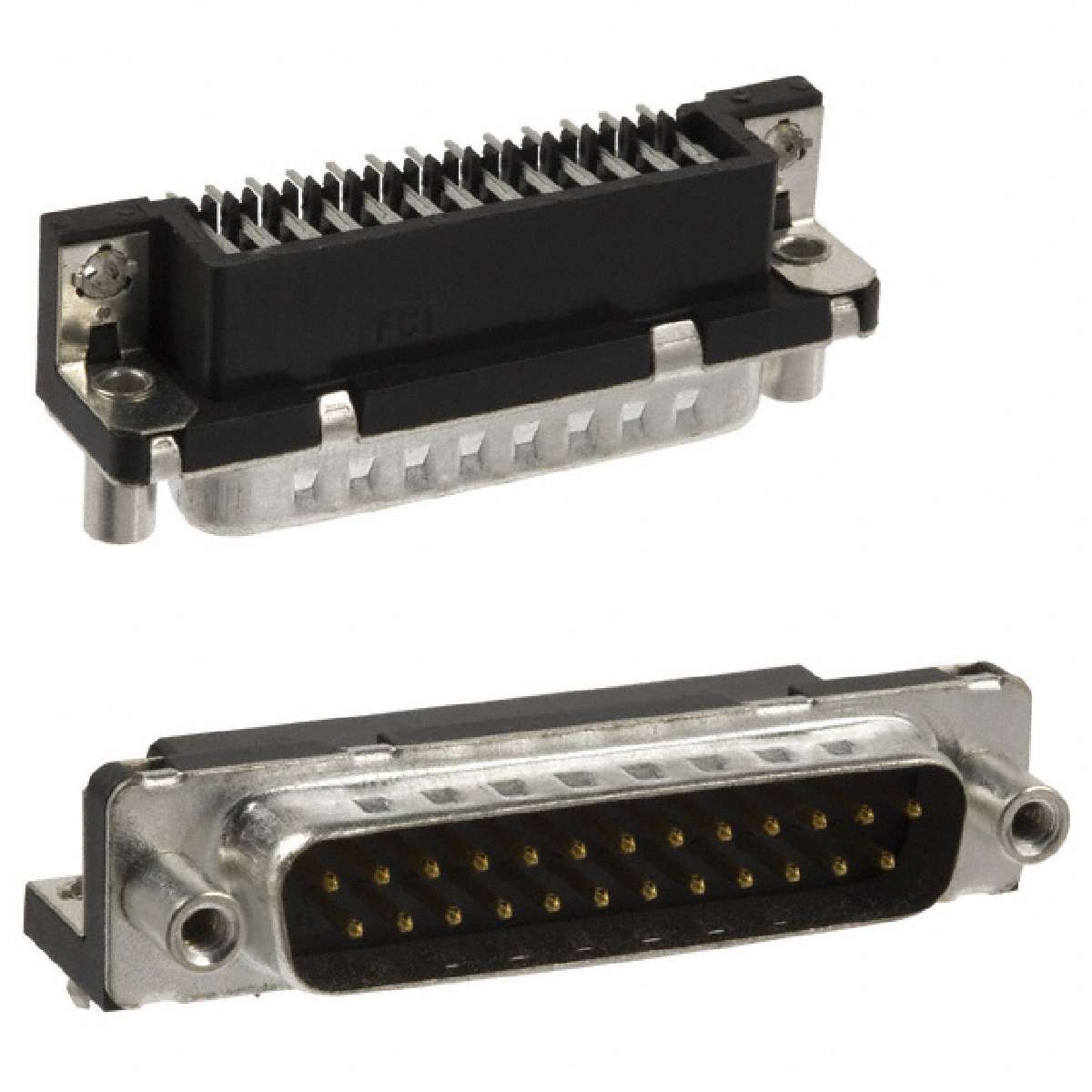

FCI D 系列 2.84mm 节距 25 路 直角 通孔安装, D-Sub 连接器 插头
FCI"s D-Subminiature connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Subminiature connectors are one of the most popular Input — Output interconnects, addressing a wide variety of applications in Telecommunications, Data, Consumer, Industrial, military, Instrumentation and Medical. Since many years FCI has been offering a wide range of D-Subminiature connectors to meet various design requirements including those in harsh environment.
触点数 25
极性 Male
触点电镀 Gold
额定电流 5 A
排数 2
易燃性等级 UL 94 V-0
针脚数 25
拔插次数 200
额定电压 300 V
工作电压Max 300 VAC
安装方式 Through Hole
引脚间距 2.76 mm
长度 53.03 mm
宽度 18.7 mm
高度 12.58 mm
引脚间距 2.76 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
D25P33E4GV00LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
10090097-P254VLF 法马通 | 功能相似 | D25P33E4GV00LF和10090097-P254VLF的区别 |
SDS107-PRW2-M25-SN63-11 Sullins | 功能相似 | D25P33E4GV00LF和SDS107-PRW2-M25-SN63-11的区别 |
