DPS310XTSA1 编带

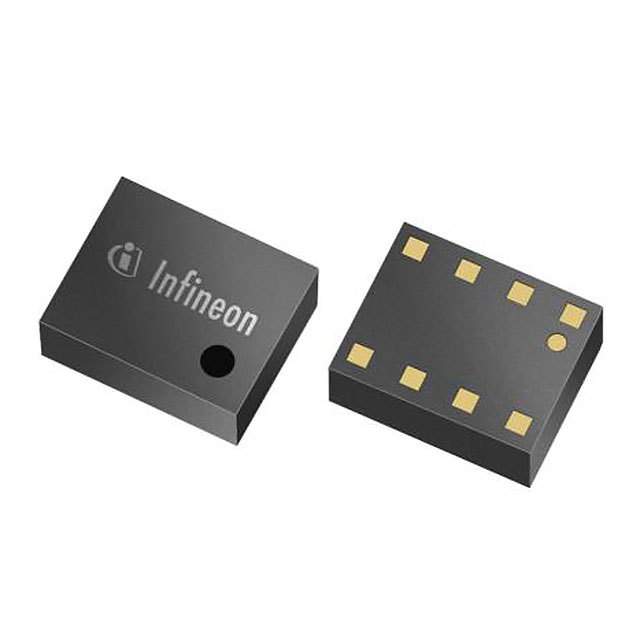

The DPS310 is a miniaturized Digital Barometric Air Pressure Sensor with a high accuracy and a low current consumption, capable of measuring both pressure and temperature. The pressure sensor element is based on a capacitive sensing principle which guarantees high precision during temperature changes. The small package makes the DPS310 ideal for mobile applications and wearable devices. The internal signal processor converts the output from the pressure and temperature sensor elements to 24 bit results. Each unit is individually calibrated, the calibration coeȄicients calculated during this process are stored in the calibration registers. The coeȄicients are used in the application to convert the measurement results to high accuracy pressure and temperature values.
DPS310, SP001360586
- .
- Operation range: Pressure: 300 -1200 hPa. Temperature: -40 - 85 °C
- .
- Pressure sensor precision: ± 0.005 hPa or ±0.05 m high precision mode
- .
- Relative accuracy: ± 0.06 hPa or ±0.5 m
- .
- Absolute accuracy: ± 1 hPa or ±8 m
- .
- Temperature accuracy: ± 0.5°C
- .
- Pressure temperature sensitivity: 0.5Pa/K
- .
- Measurement time: Typical: 27.6 ms for standard mode 16x. Minimum: 3.6 ms for low precision mode
- .
- Average current consumption: 1.7 µA for Pressure Measurement, 1.5uA for Temperature measurement @1Hz sampling rate, Standby: 0.5 µA
