DSM7UA30101

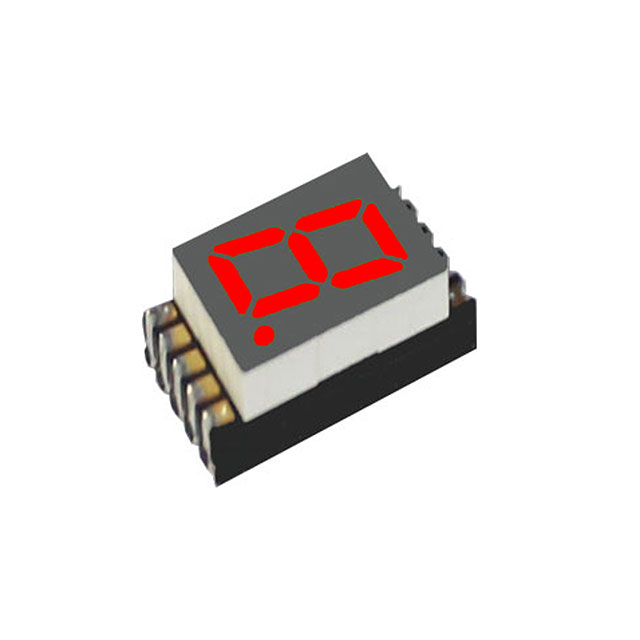

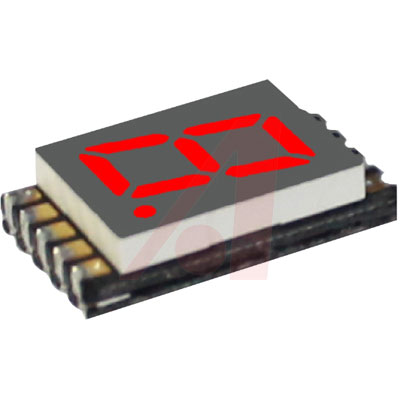

VCC VISUAL COMMUNICATIONS COMPANY  DSM7UA30101  DISPLAY, SEVEN SEGMENT, 7.62MM, RED 新

The Ultra Thin SMD LED display is developed on patented technology and is the industry’s thinnest 7-segment display. This DSM series is available in single digit 7-segment numeric display, in 4 different digit heights 0.20, 0.30, 0,56 or 0.70 inch, and in 2 different bright colors red or pure green. The DSM series enables innovative design opportunities due to its minimum thickness of 0.083 inch 2.10mm. It is also packaged in tape and reel for SMT manufacturing to reduce production time and costs.

**Features**

* Ultra thin 7 segment SMD numeric LED display

* Top-mount or reverse-mount applications which enable product design flexibility

* Reduce overall thickness of PCB, with major cost savings

* Low current operation

* Lower power consumption

* Life expectancy: 100,000 hours

* Easy mounting on PC boards or sockets

* High light output

* Excellent character appearance

* Automation-friendly tape and reel option

* Exclusive patented technology"
