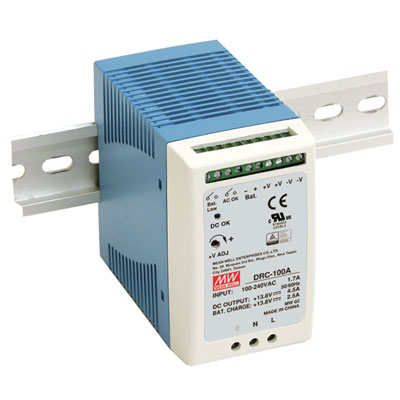

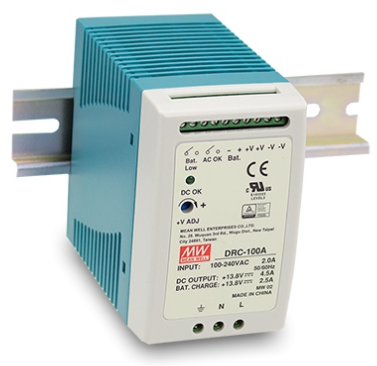

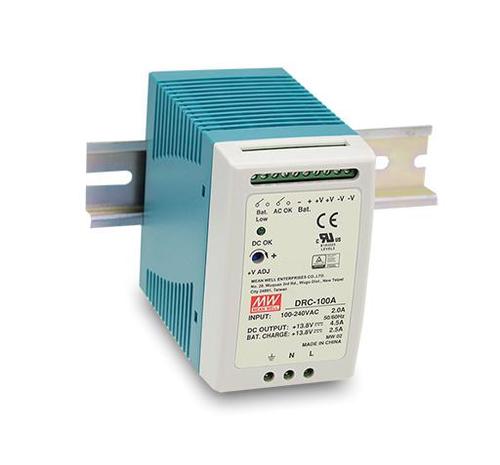

Battery Chargers 1Out 13.8V/13.8V 4.5A/2.5A 96.6W 13Pin
Mean-Well USA, Inc."s battery charger will charge your devices" batteries to full capacity. It has a voltage of 13.8|13.8 V and maximum output power of 96.6 W. This part"s single output can handle a current up to 4.5|2.5 A. This part has an input voltage of 90 to 264. This part has a minimum operating temperature of -30 °C and a maximum of 70 °C.
艾睿:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 4.5A/2.5A 96.6W 13-Pin
Jameco:
100 Watt Single Output Power Supply with Battery Charger UPS Function
安富利:
MWLDRC-100A
TME:
Pwr sup.unit: switched-mode; buffer; 96.6W; 13.8VDC; 13.8VDC; 4.5A
MASTER:
AC/DC Power Supply - 2 Outputs - 13.8/13.8V@4.5/2.5A - 96.6W
Electro Sonic:
AC/DC Power Supply - 2 Outputs - 13.8/13.8V@4.5/2.5A - 96.6W
CDI:
96.6W 13.8V AC/DC Single Output with 13.8V, 2.5A Battery Charger
额定功率 96.6 W
输出接口数 2
输出电压 13.8 V
输出电流 7 A
输出功率 96.6 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
输入电流Min 1.8 A
输出功率Max 96.6 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 90VAC ~ 264VAC, 127VDC ~ 370VDC
引脚数 13
长度 2.2 in
宽度 3.5 in
高度 3.9 in
颜色 White
重量 370 g
工作温度 -30℃ ~ 70℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
