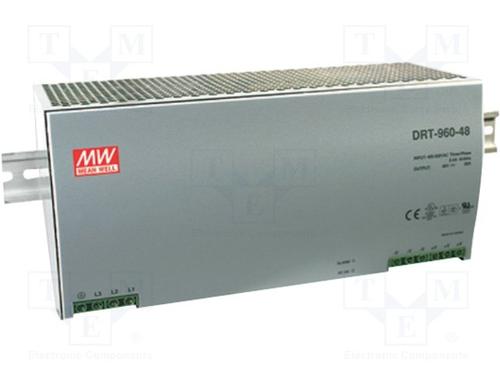

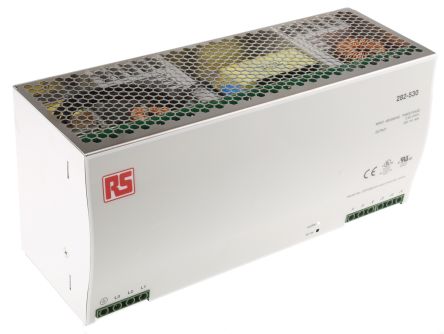

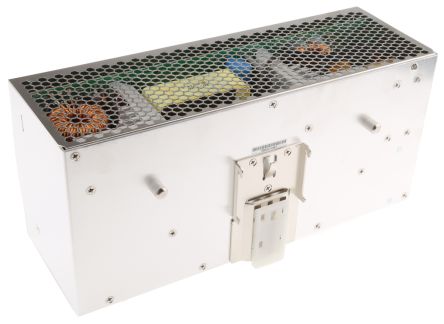

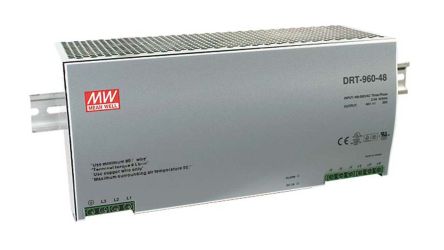

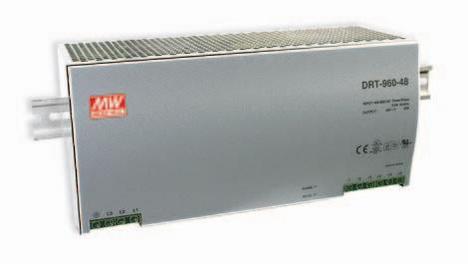

DRT-960-24

DRT-960-24图片1
DRT-960-24图片2
DRT-960-24图片3
DRT-960-24图片4
DRT-960-24图片5
DRT-960-24图片6
DRT-960-24图片7
DRT-960-24图片8
DRT-960-24图片9
DRT-960-24图片10
DRT-960-24图片11
DRT-960-24图片12
DRT-960-24图片13
DRT-960-24图片14
DRT-960-24图片15
DRT-960-24图片16
DRT-960-24图片17
DRT-960-24图片18
DRT-960-24概述

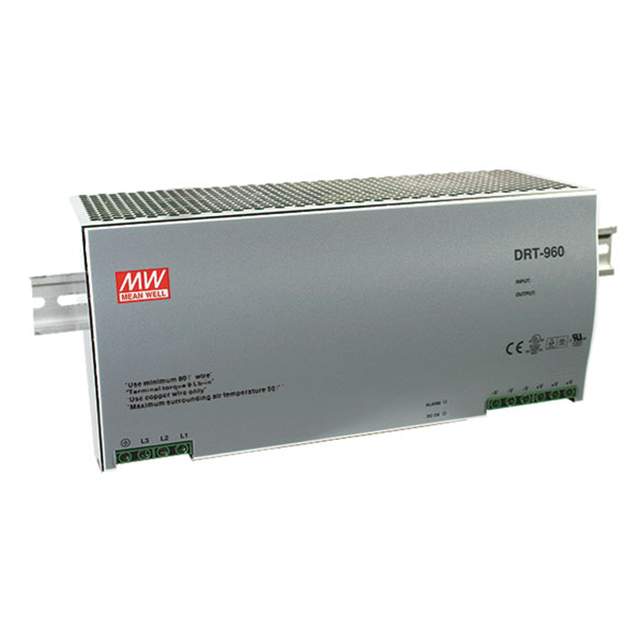

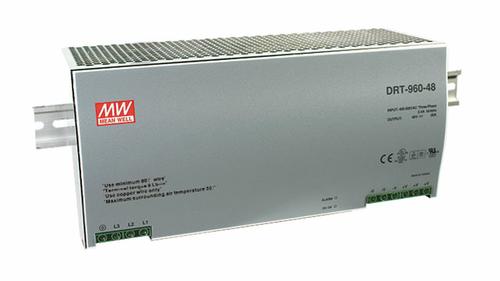

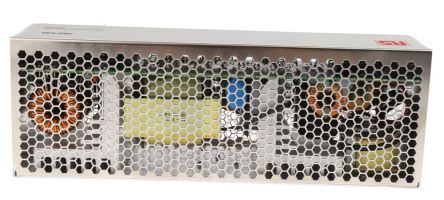

RS Pro DIN 导轨和面板安装电源 开关模式 960W, 40A输出 24V dc/

DRT Series Three Phase Industrial DIN Rail Power Supply

A range of 3 phase DIN Rail Power Supply Units with wattages ranging from 240 W to 960 W. This series of power supply uses free air convection to cool the unit, increasing the lifetime and reliability of the PSU.

### Features and Benefits

• 3 phase AC 340 V to 550 V wide range input

• Protections: Short circuit/Overload/Over voltage/Over temperature

• Cooling by free air convection

• Can be installed on DIN Rail TS-35/7.5 or 15

• UL 508 industrial control equipment approved

• EN61000-6-2 EN50082-2 industrial immunity level

• 100% full load burn-in test

• 3 years warranty

### 240 W Features

• High efficiency 89% and low-power dissipation

• Built-in constant current limiting circuit

• Fixed switching frequency at 70 kHz

### 480 W Features

• High efficiency 89% and low-power dissipation

• Built-in constant current limiting circuit

### 960 W Features

• High efficiency 91% and low-power dissipation

• Optional parallel function 1+1

### Product Application Information

Ideal applications include factory automation, semi-conductor fabrication equipment, marine related installation and electromechanical.

### 认可

UL508

DRT-960-24中文资料参数规格
技术参数

额定功率 960 W

输出接口数 1

输出电压 24 V

输出电流 40 A

输出功率 960 W

隔离电压 3 kV

输入电压Max 550 VAC

输入电压Min 340 VAC

输入电压AC Max 550 V

输入电压AC Min 340 V

输出电压Max 28 VDC

输出电压Min 24 VDC

额定电流Max 2 A

输出电流Max 40 A

输入电流Min 2 A

输出功率Max 960 W

工作温度Max 60 ℃

工作温度Min -20 ℃

输入电压 340V ~ 550V

封装参数

引脚数 10

封装 Metal

外形尺寸

长度 276 mm

宽度 100 mm

高度 100 mm

封装 Metal

物理参数

颜色 Silver

重量 3.3 kg

工作温度 -20℃ ~ 60℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 危险场所,ITE(商业)

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504409540

数据手册

在线购买DRT-960-24
型号: DRT-960-24
制造商: Mean Well 台湾明纬
描述:RS Pro DIN 导轨和面板安装电源 开关模式 960W, 40A输出 24V dc/
