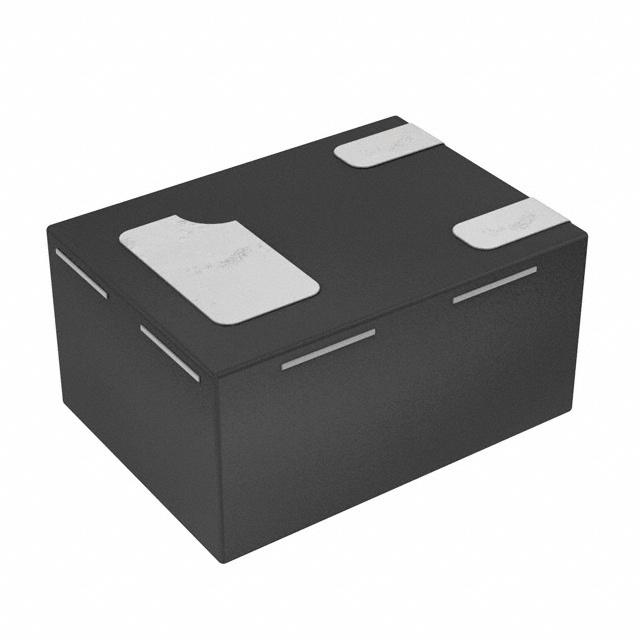

Diode TVS Dual Common Anode Uni-Dir 5.5V 0.25W1/4W 3Pin DFN T/R
Install this tvs ESD protection device from Zetex to prevent future damage to your electronic equipment from electrostatic discharge. This device"s maximum clamping voltage is 12 V. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±15@Contact Disc kV. This ESD diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a dual common anode configuration. Its capacitance value is 0.65 pF.
电容 0.65 pF
击穿电压 6 V
耗散功率 0.25 W
钳位电压 12 V
脉冲峰值功率 0.25 W
最小反向击穿电压 6 V
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 DFN0806-3
高度 0.37 mm
封装 DFN0806-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
