P沟道 60V 9.4A
表面贴装型 P 通道 9.4A(Tc) 1.6W(Ta) TO-252-3
立创商城:
P沟道 60V 9.4A
得捷:
MOSFET P-CH 60V 9.4A TO252
贸泽:
MOSFET 60V P-Ch Enh FET 20Vgs -14A 1.6W
艾睿:
Do you require the advantages of traditional transistors coupled with the switching benefits of power MOSFETs? Diodes Zetex&s;s DMP6185SK3-13 power MOSFET can provide a solution. Its maximum power dissipation is 2800 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This P channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
安富利:
Trans MOSFET P-CH 60V 3.6A 3-Pin TO-252 T/R
Verical:
Trans MOSFET P-CH 60V 3.6A Automotive 3-Pin2+Tab DPAK T/R
极性 P-CH
耗散功率 2.8 W
漏源极电压Vds 60 V
连续漏极电流Ids 3.6A
上升时间 23 ns
输入电容Ciss 708pF @30VVds
额定功率Max 1.6 W
下降时间 39 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1.6W Ta
安装方式 Surface Mount
引脚数 3

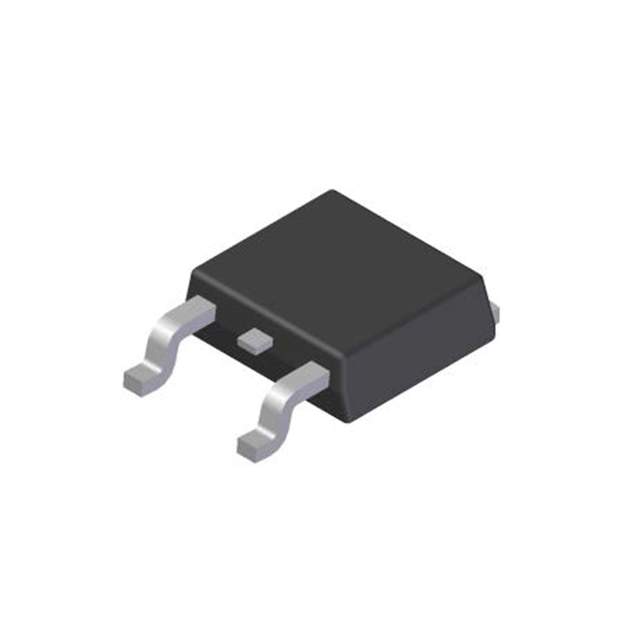

封装 TO-252-3
封装 TO-252-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
