N沟道 20V 11.7A
In addition to amplifying electronic signals, you"ll be able to switch between various lines with the power MOSFET, developed by Zetex. Its maximum power dissipation is 1970 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N channel MOSFET transistor operates in enhancement mode.
极性 N-CH
耗散功率 1.97 W
输入电容 2248 pF
漏源极电压Vds 20 V
连续漏极电流Ids 11.7A
上升时间 2.6 ns
输入电容Ciss 2248pF @10VVds
额定功率Max 610 mW
下降时间 13.5 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 610mW Ta
安装方式 Surface Mount
引脚数 6

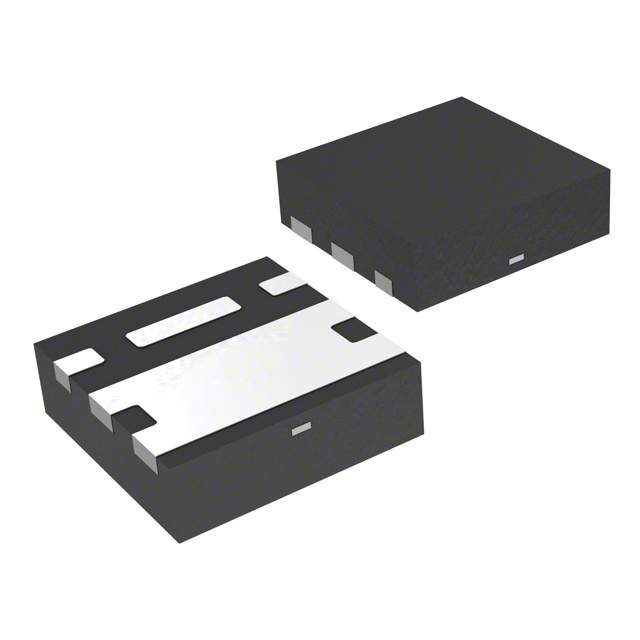

封装 UDFN2020-6
长度 2.05 mm
封装 UDFN2020-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
