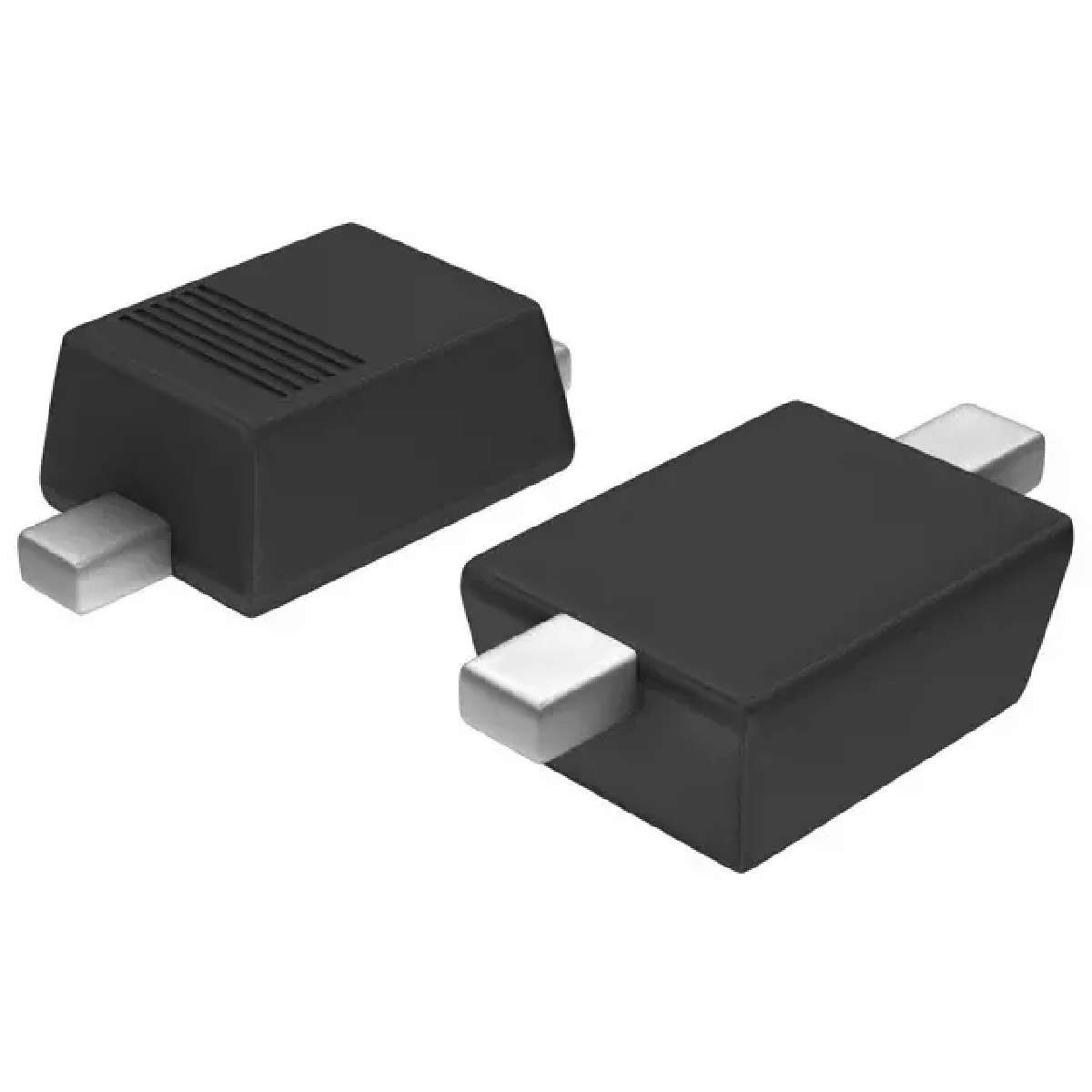

Diode Zener Single 24.25V 2.19% 400mW Automotive 2Pin SOD-323F T/R
This zener diode from Zetex will allow you to run it in the reverse direction. Its maximum power dissipation is 400 mW. Its maximum leakage current is 0.05 μA. Its test current is 5 mA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 24.25 V and a voltage tolerance of 2%. It is made in a single configuration.
容差 ±2 %
额定功率 400 mW
正向电压 1.1V @100mA
耗散功率 0.4 W
测试电流 5 mA
稳压值 24.25 V
正向电压Max 1.1V @100mA
额定功率Max 400 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 400 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
封装 SOD-323
工作温度 -65℃ ~ 150℃
温度系数 20.4 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
