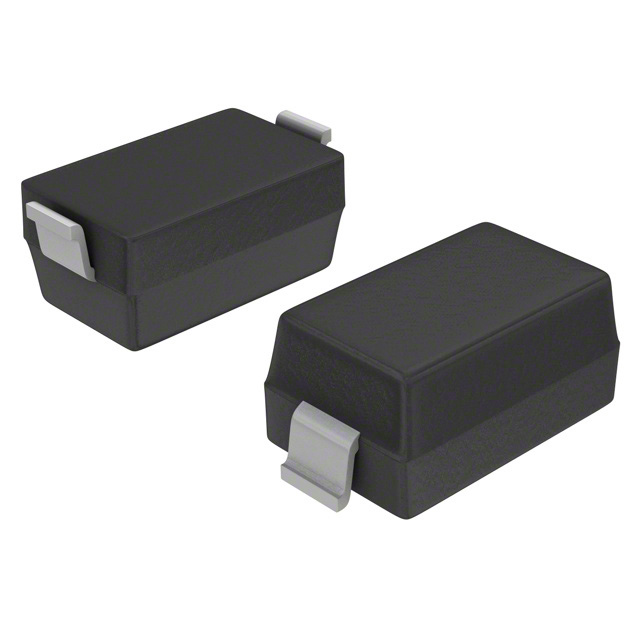

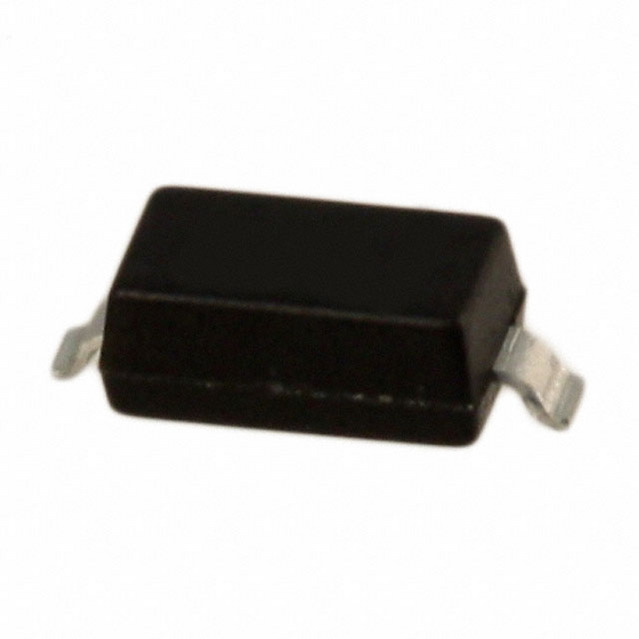

DiodesZetex DDZ15-7 1 齐纳二极管, 单路, 15.2V 3% 500 mW 表面贴装 2-Pin SOD-123
DDZ15 Series 15 V ±3% 310 mW Surface Mount Precision Zener Diode - SOD-123
得捷:
DIODE ZENER 15V 500MW SOD123
立创商城:
470mW
艾睿:
Check out this perfect DDZ15-7 zener diode from Diodes Zetex for operating in the reverse breakdown region. Its test current is 10 mA. Its maximum leakage current is 0.05 μA. Its maximum power dissipation is 500 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 15.185 V and a voltage tolerance of 3%. It is made in a single configuration.
安富利:
Diode Zener Single 15.185V 3% 500mW 2-Pin SOD-123 T/R
Chip1Stop:
Diode Zener Single 15.185V 3% 500mW 2-Pin SOD-123 T/R
Verical:
Diode Zener Single 15.185V 500mW Automotive 2-Pin SOD-123 T/R
Win Source:
DIODE ZENER 15V 500MW SOD123
容差 ±3 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 10 mA
稳压值 15 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.85 mm
宽度 1.7 mm
高度 1.25 mm
封装 SOD-123-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DDZ15-7 Diodes 美台 | 当前型号 | 当前型号 |
MMSZ15T1G 安森美 | 功能相似 | DDZ15-7和MMSZ15T1G的区别 |
MMSZ15T1 安森美 | 功能相似 | DDZ15-7和MMSZ15T1的区别 |
MMSZ15ET1G 安森美 | 功能相似 | DDZ15-7和MMSZ15ET1G的区别 |
