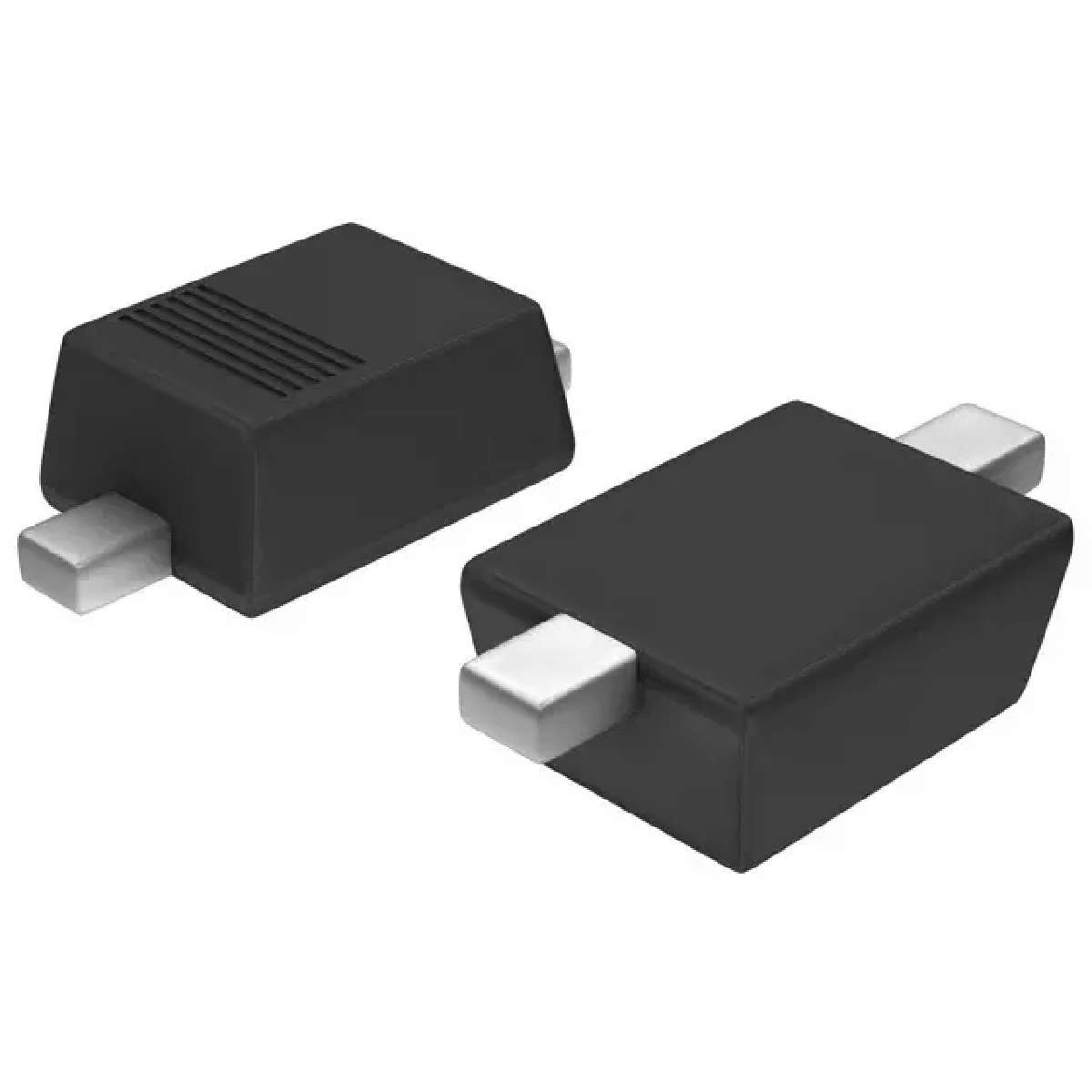

Diode Zener Single 36.275V 2.52% 0.5W1/2W Automotive 2Pin SOD-323F T/R
This zener diode from Zetex is perfect for blocking a voltage. Its maximum power dissipation is 500 mW. Its test current is 5 mA. Its maximum leakage current is 0.2 μA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener device has a nominal voltage of 36.275 V and a voltage tolerance of 3%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
容差 ±3 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 0.5 W
测试电流 5 mA
稳压值 36.28 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-323
封装 SOD-323
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
