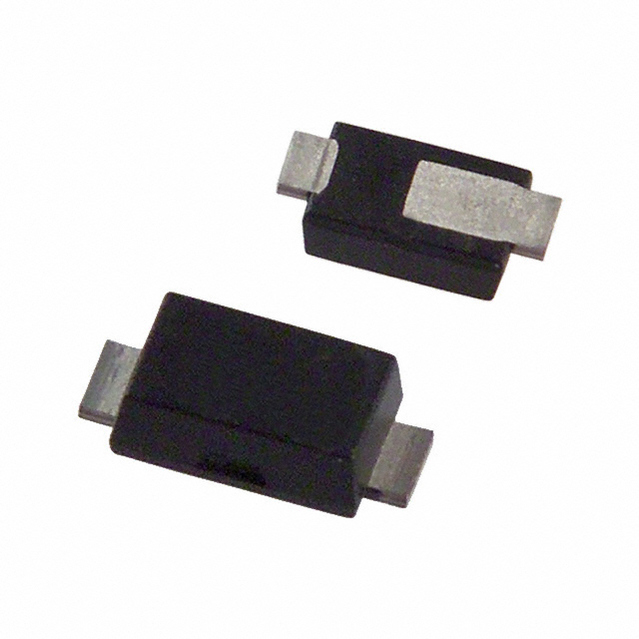

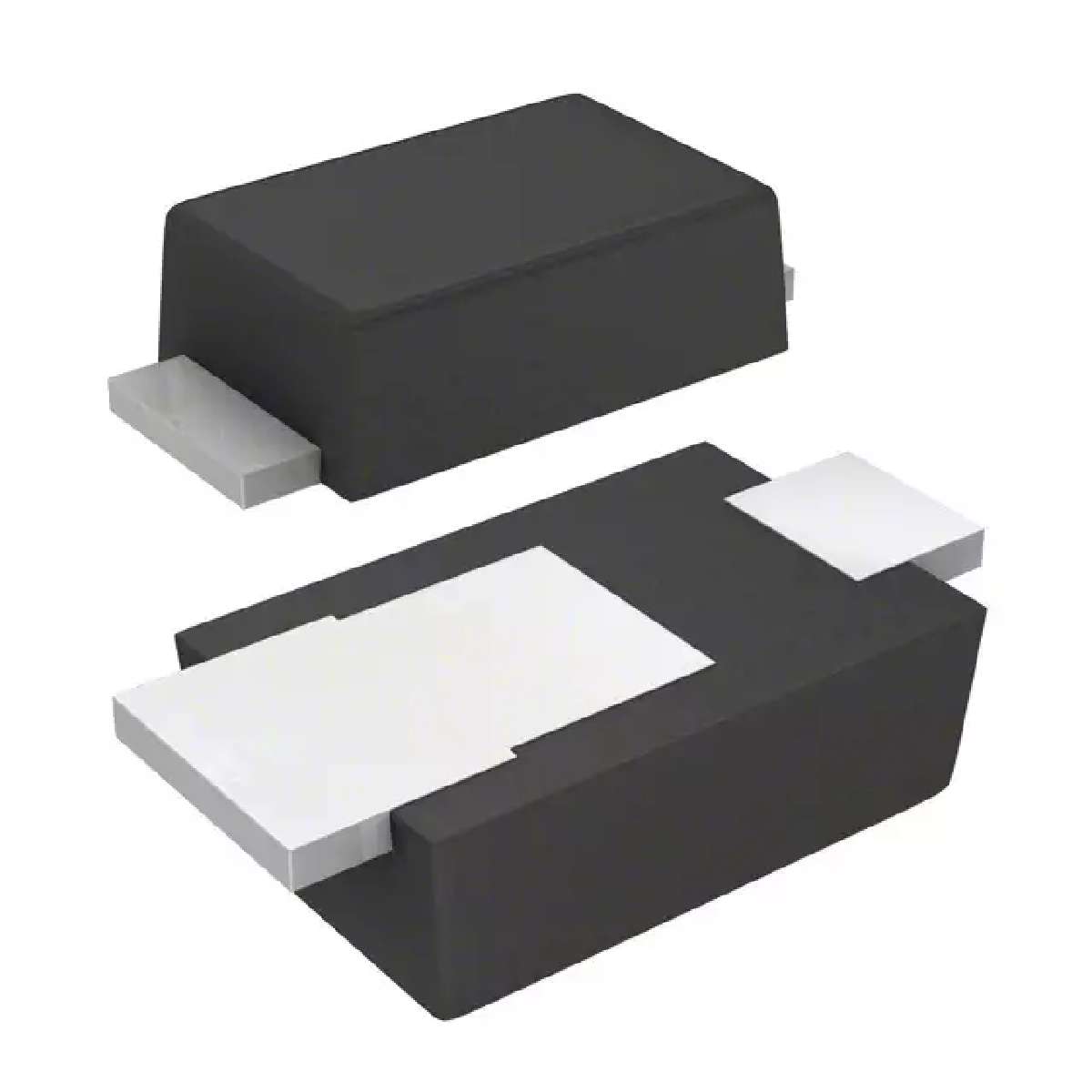

DiodesZetex DFLZ8V2-7 1 齐纳二极管, 单路, 8.2V 5% 1 W 表面贴装 2-Pin PowerDI 123
- 齐纳 8.2 V 1 W ±6% 表面贴装型 PowerDI™ 123
得捷:
DIODE ZENER 8.2V 1W POWERDI123
立创商城:
8.2V 1W
艾睿:
This DFLZ8V2-7 zener diode from Diodes Zetex is perfect for blocking a voltage. Its maximum power dissipation is 1000 mW. Its test current is 100 mA. Its maximum leakage current is 5 μA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 8.2 V and a voltage tolerance of 6%. This zener diode has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration.
Allied Electronics:
Diode Zener 8.2V 6% 1W 2Pin PowerDI 123
安富利:
Diode Zener Single 8.2V 6% 1W 2-Pin PowerDI 123 T/R
Chip1Stop:
Diode Zener Single 8.2V 6% 1W 2-Pin PowerDI 123 T/R
Verical:
Diode Zener Single 8.2V 5% 1000mW Automotive 2-Pin PowerDI 123 T/R
Win Source:
DIODE ZENER 8.2V 1W POWERDI123
额定电压DC 8.20 V
容差 ±6 %
额定功率 1.00 W
正向电压 1.2V @200mA
耗散功率 1000 mW
测试电流 100 mA
稳压值 8.2 V
正向电压Max 1.2V @200mA
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1000 mW
安装方式 Surface Mount
引脚数 2
封装 PowerDI™ 123
长度 2.8 mm
宽度 1.78 mm
高度 0.98 mm
封装 PowerDI™ 123
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DFLZ8V2-7 Diodes 美台 | 当前型号 | 当前型号 |
DFLZ8V2Q-7 美台 | 类似代替 | DFLZ8V2-7和DFLZ8V2Q-7的区别 |
