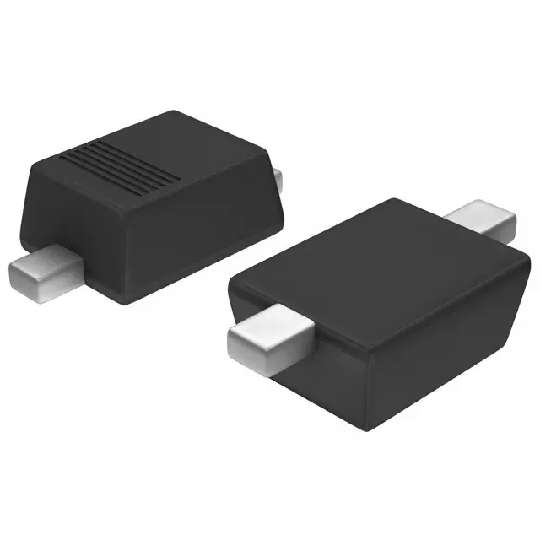

DiodesZetex DDZ36BSF-7 1 齐纳二极管, 单路, 36V 2.5% 500 mW 表面贴装 2-Pin SOD-323F
This zener diode from Zetex will allow you to run it in the reverse direction. Its maximum leakage current is 0.07 μA. Its maximum power dissipation is 500 mW. Its test current is 5 mA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 33.64 V and a voltage tolerance of 3%. It is made in a single configuration.
容差 ±3 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 0.5 W
测试电流 5 mA
稳压值 33.64 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2
宽度 1.25 mm
封装 SOD-323-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
