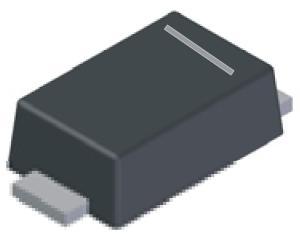

DFLR1200 系列 200 V 1 A 表面贴装 玻璃钝化 整流器-PowerDI-123
DFLR1200 Series 200 V 1 A Surface Mount Glass Passivated Rectifier-PowerDI-123
得捷:
DIODE GP 200V 1A POWERDI123
立创商城:
200V 1A 1.1V@1A
艾睿:
Converting from AC to DC is simple when using a switching diode DFLR1200-7 rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 25 A, while its maximum continuous forward current is 1 A.
Allied Electronics:
Diode Standard 1A 200V PowerDI 123
安富利:
Diode Switching 200V 1A 2-Pin PowerDI 123 T/R
富昌:
DFLR1200 系列 200 V 1 A 表面贴装 玻璃钝化 整流器-PowerDI-123
Chip1Stop:
Diode Switching 200V 1A 2-Pin PowerDI 123 T/R
Newark:
# DIODES INC. DFLR1200-7 Standard Recovery Diode, 200 V, 1 A, Single, 1.1 V, 25 A
儒卓力:
**DIODE 200V 1A POWERDI123 **
Win Source:
DIODE GEN 200V 1A POWERDI123
额定电压DC 200 V
额定电流 1.00 A
电容 10.0 pF
输出电流 ≤1.00 A
针脚数 2
正向电压 1.1V @1A
极性 Standard
热阻 6℃/W RθJL
正向电流 1 A
最大正向浪涌电流(Ifsm) 25 A
正向电压Max 1.1 V
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-123
封装 SMD-123
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 国防, 军用与航空, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DFLR1200-7 Diodes 美台 | 当前型号 | 当前型号 |
DFLR1600-7 美台 | 类似代替 | DFLR1200-7和DFLR1600-7的区别 |
DFLR1400-7 美台 | 类似代替 | DFLR1200-7和DFLR1400-7的区别 |
DFLR1800-7 美台 | 功能相似 | DFLR1200-7和DFLR1800-7的区别 |
