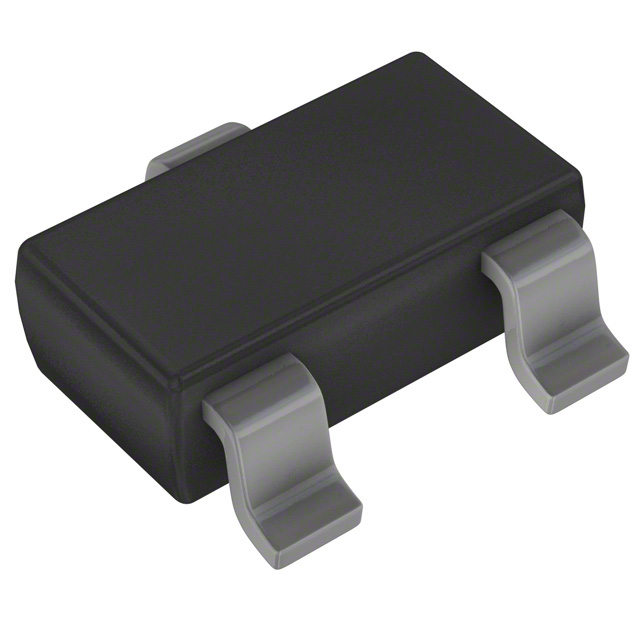

DDTB142TC-7-F图片1
DDTB142TC-7-F图片2
DDTB142TC-7-F图片3
DDTB142TC-7-F图片4
DDTB142TC-7-F图片5
DDTB142TC-7-F图片6
DDTB142TC-7-F图片7
DDTB142TC-7-F概述

DDTB 系列 50 V 500 mA PNP 预偏置 表面贴装 晶体管 - SOT-23-3

The PNP digital transistor from Zetex is your alternative to traditional BJTs in that it can provide digital signal processing power. This product"s maximum continuous DC collector current is 500 mA, while its minimum DC current gain is 100@5mA@5 V. It has a maximum collector emitter saturation voltage of 0.3@2.5mA@50mA V. It has a maximum collector emitter voltage of 40 V. Its maximum power dissipation is 200 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.

DDTB142TC-7-F中文资料参数规格
技术参数

额定电压DC -50.0 V

额定电流 -500 mA

极性 PNP

耗散功率 200 mW

击穿电压集电极-发射极 50 V

集电极最大允许电流 500mA

最小电流放大倍数hFE 100 @5mA, 5V

最大电流放大倍数hFE 600

额定功率Max 200 mW

工作温度Max 150 ℃

工作温度Min -55 ℃

增益带宽 200 MHz

耗散功率Max 200 mW

封装参数

安装方式 Surface Mount

引脚数 3

封装 SOT-23-3

外形尺寸

长度 3.05 mm

宽度 1.4 mm

高度 1 mm

封装 SOT-23-3

物理参数

工作温度 -55℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99
