DDTC114ELP 系列 50 V 50 mA 250 mW NPN 小信号 晶体管 - DFN-3
Look no further than Zetex"s NPN digital transistor, which can provide a solution to your digital signal processing needs. This transistor"s maximum base emitter saturation voltage is 0.98@1mA@10mA|1.2@5mA@50mA V. This product"s maximum continuous DC collector current is 50 mA, while its minimum DC current gain is 10@1mA@5 V|15@2mA@5V|60@10mA@5V|100@50mA@5V|90@70mA@5V. It has a maximum collector emitter saturation voltage of 0.15@1mA@10mA|0.2@5mA@50mA|0.25@2.5mA@50mA|0.25@10mA@50mA|0.3@10mA@70mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 250 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This transistor has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration.
极性 NPN
耗散功率 250 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 50mA
最小电流放大倍数hFE 100 @50mA, 5V
最大电流放大倍数hFE 10
额定功率Max 250 mW
工作温度Max 150 ℃
工作温度Min 55 ℃
增益带宽 250 MHz
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3

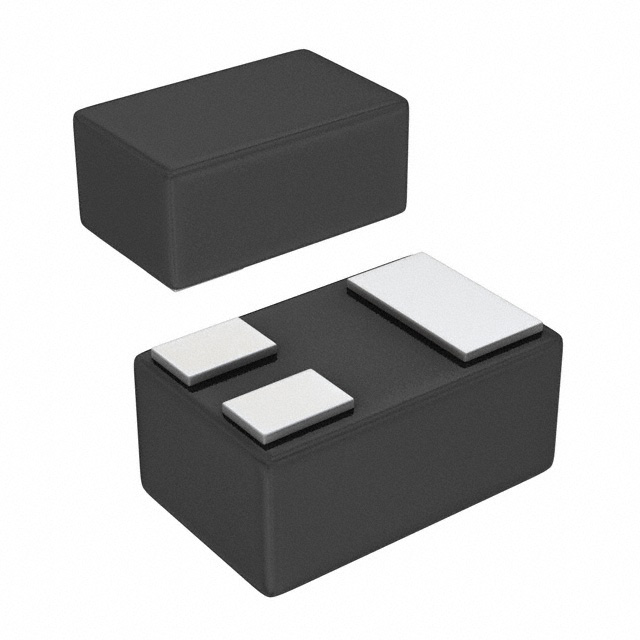

封装 DFN-3
长度 1 mm
宽度 0.6 mm
高度 0.47 mm
封装 DFN-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
