NPN - 预偏压 100mA 50V
Look no further than Zetex"s NPN digital transistor"s, the ideal component to use when designing a digital signal processing unit. This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 80@10mA@5 V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
额定电压DC 50.0 V
额定电流 100 mA
极性 NPN
耗散功率 0.2 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 80 @10mA, 5V
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 250 MHz
耗散功率Max 200 mW
电源电压 50 V
安装方式 Surface Mount
引脚数 3

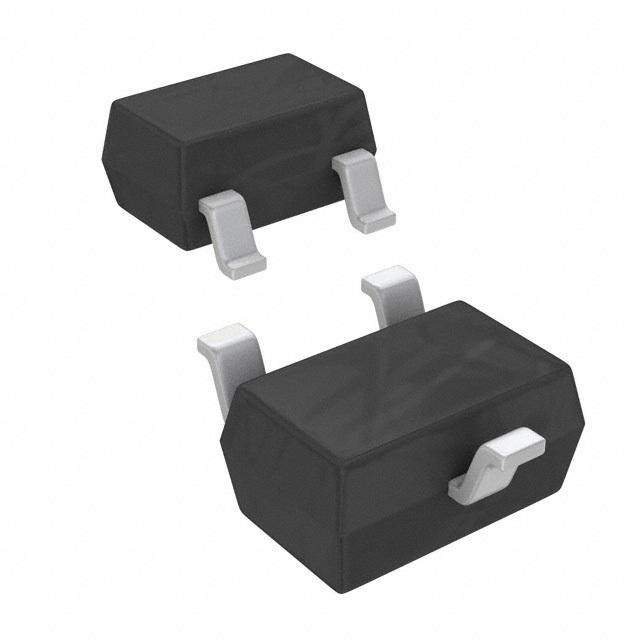

封装 SOT-323-3
封装 SOT-323-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DDTC123JUA-7-F Diodes 美台 | 当前型号 | 当前型号 |
DDTC123JCA-7-F 美台 | 完全替代 | DDTC123JUA-7-F和DDTC123JCA-7-F的区别 |
DDTC123JE-7-F 美台 | 类似代替 | DDTC123JUA-7-F和DDTC123JE-7-F的区别 |
DDTC123JUA-7 美台 | 类似代替 | DDTC123JUA-7-F和DDTC123JUA-7的区别 |
