三极管
三极管
立创商城:
NPN 80V 1A
得捷:
TRANS NPN 80V 1A SOT89-3
艾睿:
Compared to other transistors, the NPN DCX56-16-13 general purpose bipolar junction transistor, developed by Diodes Zetex, can offer a high-voltage solution in your circuit. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1000 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a maximum collector emitter voltage of 80 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
安富利:
Trans GP BJT NPN 80V 1A 4-Pin3+Tab SOT-89 T/R
Chip1Stop:
Trans GP BJT NPN 80V 1A 4-Pin3+Tab SOT-89 T/R
Verical:
Trans GP BJT NPN 80V 1A 1000mW 4-Pin3+Tab SOT-89 T/R
儒卓力:
**NPN TRANSISTOR 80V 1A SOT89 **
Win Source:
TRANS NPN 80V 1A SOT89-3
DeviceMart:
TRANSISTOR BIPO NPN 80V SOT89-3
频率 200 MHz
额定功率 1 W
极性 NPN
耗散功率 1 W
击穿电压集电极-发射极 80 V
集电极最大允许电流 1A
最小电流放大倍数hFE 100 @150mA, 2V
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1000 mW
安装方式 Surface Mount
引脚数 4

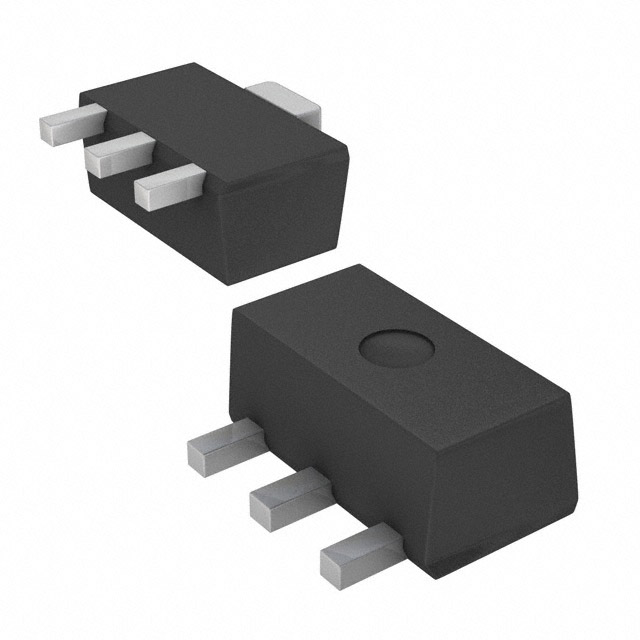

封装 SOT-89-3
封装 SOT-89-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DCX56-16-13 Diodes 美台 | 当前型号 | 当前型号 |
BCX5616TA 美台 | 类似代替 | DCX56-16-13和BCX5616TA的区别 |
BCX5616QTA 美台 | 功能相似 | DCX56-16-13和BCX5616QTA的区别 |
BCX56-10@115 恩智浦 | 功能相似 | DCX56-16-13和BCX56-10@115的区别 |
