双极晶体管 - 双极结型晶体管BJT 1W -45V
Zetex brings you the solution to your high-voltage BJT needs with their PNP general purpose bipolar junction transistor. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1000 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 5 V.
频率 200 MHz
极性 PNP
耗散功率 1 W
击穿电压集电极-发射极 45 V
集电极最大允许电流 1A
最小电流放大倍数hFE 100 @150mA, 2V
最大电流放大倍数hFE 250
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1000 mW
安装方式 Surface Mount
引脚数 4

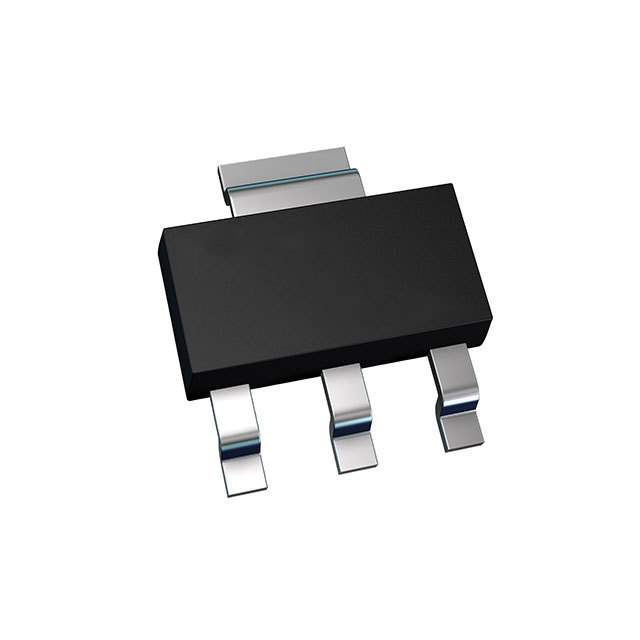

封装 TO-261-4
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 TO-261-4
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DCP51-16-13 Diodes 美台 | 当前型号 | 当前型号 |
BCP5116TA 美台 | 类似代替 | DCP51-16-13和BCP5116TA的区别 |
BCP51-16,115 安世 | 功能相似 | DCP51-16-13和BCP51-16,115的区别 |
BCP51-16,135 安世 | 功能相似 | DCP51-16-13和BCP51-16,135的区别 |
