DIODES INC. DXT3150-13 单晶体管 双极, NPN, 25 V, 220 MHz, 1 W, 5 A, 250 hFE
This NPN general purpose bipolar junction transistor from Zetex is perfect for a circuit requiring high-current density and can operate in a high voltage range. This bipolar junction transistor"s maximum emitter base voltage is 7 V. Its maximum power dissipation is 1000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 25 V and a maximum emitter base voltage of 7 V.
频率 220 MHz
针脚数 3
极性 NPN
耗散功率 1 W
击穿电压集电极-发射极 25 V
集电极最大允许电流 5A
最小电流放大倍数hFE 250 @500mA, 2V
额定功率Max 1 W
直流电流增益hFE 250
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1000 mW
安装方式 Surface Mount
引脚数 4

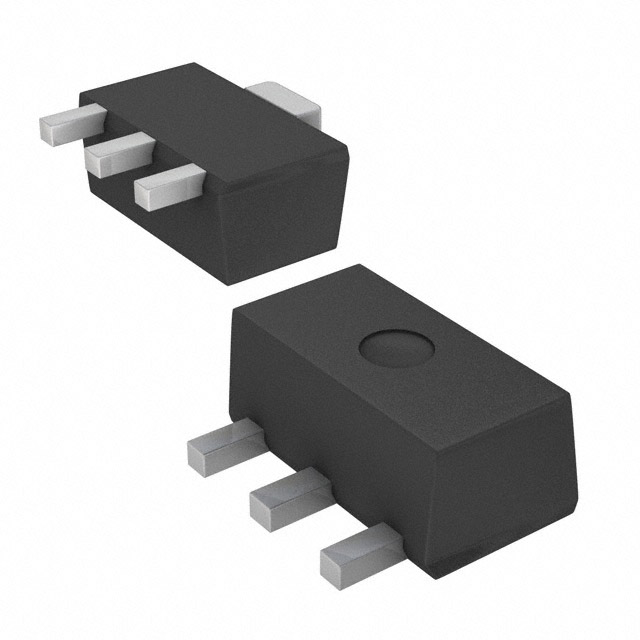

封装 SOT-89-3
封装 SOT-89-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 军用与航空, Defence, Military & Aerospace, , 自动化与过程控制, Aerospace, Defence, Military, Automation & Process Control, Power Management, , 电源管理, 国防
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
