PNP - 预偏压 100mA 50V
In contrast to traditional transistors, Zetex"s PNP digital transistor"s can be used in a wide variety of digital signal processing circuits. This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 100@1mA@5 V. It has a maximum collector emitter saturation voltage of 0.3@0.5mA@5mA V. Its maximum power dissipation is 200 mW. It has a maximum collector emitter voltage of 50 V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a single configuration. This transistor has an operating temperature range of -55 °C to 150 °C.
额定电压DC -50.0 V
额定电流 -100 mA
极性 PNP
耗散功率 0.2 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 100 @1mA, 5V
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min 55 ℃
增益带宽 250 MHz
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

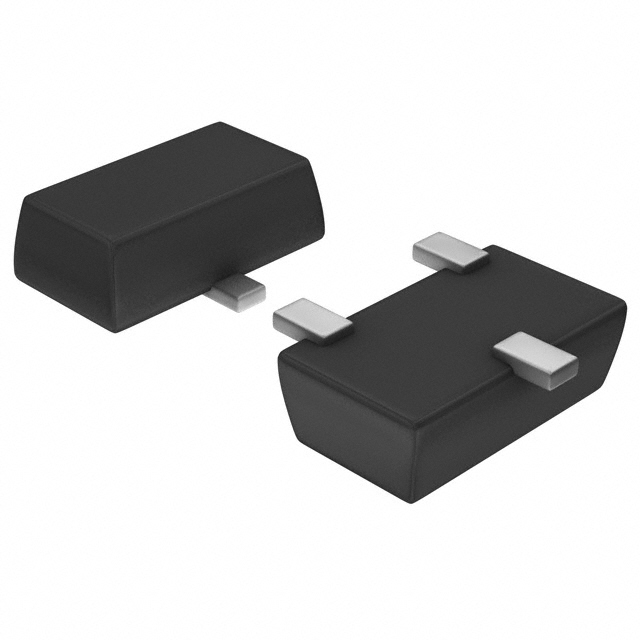

封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DDTA124TCA-7-F Diodes 美台 | 当前型号 | 当前型号 |
DDTA124TCA-7 美台 | 类似代替 | DDTA124TCA-7-F和DDTA124TCA-7的区别 |
DDTA124TKA-7-F 美台 | 功能相似 | DDTA124TCA-7-F和DDTA124TKA-7-F的区别 |
