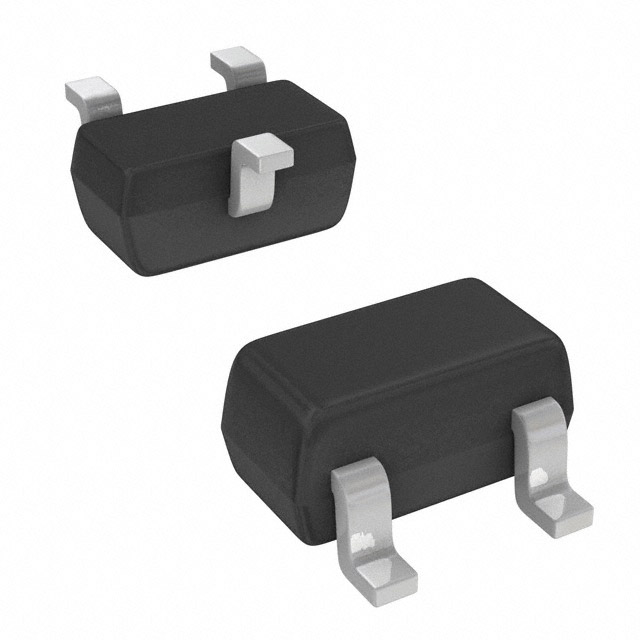

Trans Digital BJT PNP 50V 100mA 150mW Automotive 3Pin SOT-523 T/R
If you require the digital form of a traditional BJT for your signal processing needs, then the PNP digital transistor from Zetex is for you. This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 80@10mA@5 V. Its maximum power dissipation is 150 mW. It has a maximum collector emitter voltage of 50 V. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This transistor has an operating temperature range of -55 °C to 150 °C.
额定电压DC -50.0 V
额定电流 -100 mA
极性 PNP
耗散功率 0.15 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 80 @10mA, 5V
额定功率Max 150 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 250 MHz
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-523
封装 SOT-523
工作温度 -55℃ ~ 150℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DDTA143ZE-7-F Diodes 美台 | 当前型号 | 当前型号 |
DDTA143ZUA-7-F 美台 | 类似代替 | DDTA143ZE-7-F和DDTA143ZUA-7-F的区别 |
DDTA143ZE-7 美台 | 类似代替 | DDTA143ZE-7-F和DDTA143ZE-7的区别 |
