单向 12V 225W

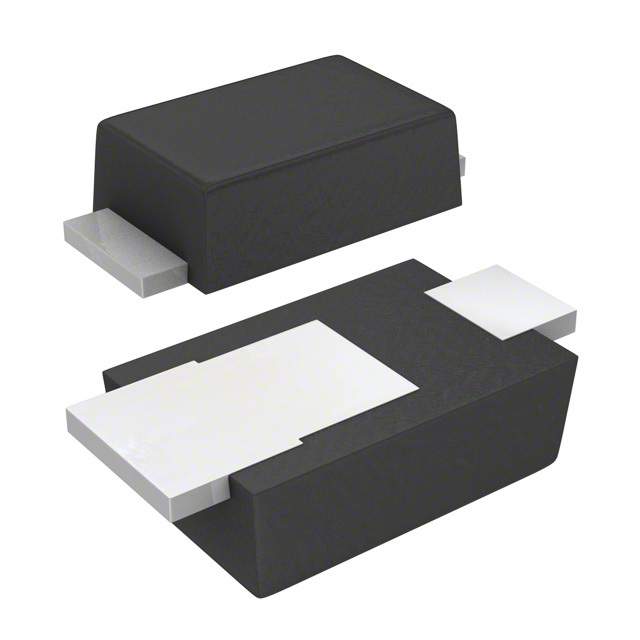

19.9V 夹子 11.3A Ipp TVS - 表面贴装型 PowerDI™ 123
得捷:
TVS DIODE 12VWM 19.9VC PWRDI 123
立创商城:
单向 Vrwm:12V
艾睿:
Sleep easy, never worry about surges again with this DFLT12A-7 TVS diode from Diodes Zetex. This device&s;s maximum clamping voltage is 19.9 V and minimum breakdown voltage is 13.3 V. Its peak pulse power dissipation is 1125 W. Its test current is 1 mA. Its maximum leakage current is 2.5 μA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Allied Electronics:
225W 12V Trans. Voltage Supp. PowerDI123
安富利:
Diode TVS Single Uni-Dir 12V 1.125KW 2-Pin PowerDI 123 T/R
Chip1Stop:
Diode TVS Single Uni-Dir 12V 1.125KW 2-Pin PowerDI 123 T/R
Verical:
Diode TVS Single Uni-Dir 12V 1.125KW Automotive 2-Pin PowerDI 123 T/R
Win Source:
TVS DIODE 12VWM POWERDI123
额定电压DC 12.0 V
额定功率 225 W
击穿电压 13.3 V
钳位电压 19.9 V
测试电流 1 mA
脉冲峰值功率 1125 W
最小反向击穿电压 13.3 V
击穿电压 13.3 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

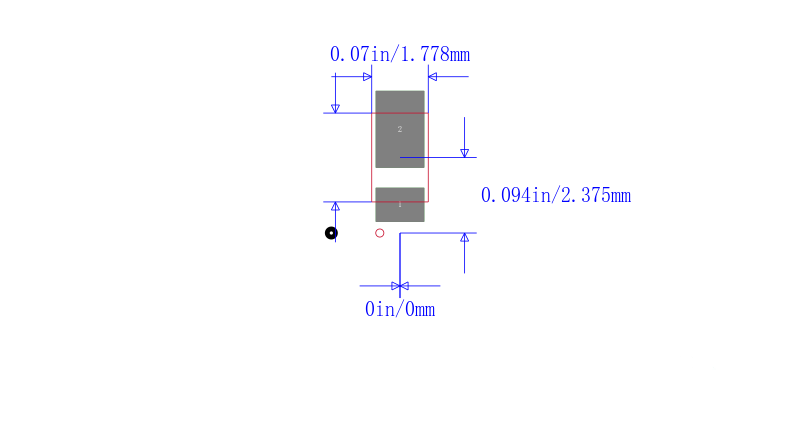

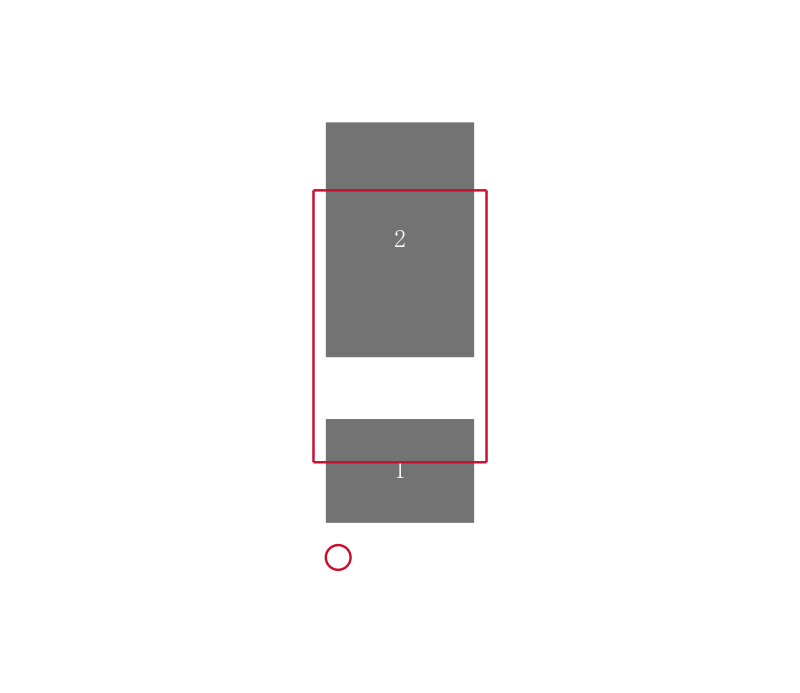

封装 POWERDI-123
长度 1.78 mm
宽度 3.7 mm
高度 0.98 mm
封装 POWERDI-123
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
