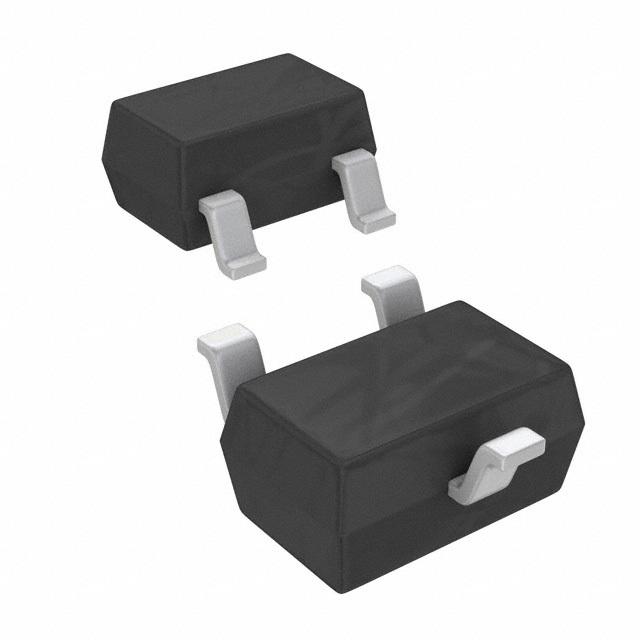

Trans Digital BJT NPN 50V 100mA 200mW Automotive 3Pin SOT-323 T/R
Look no further than Zetex"s NPN digital transistor"s, the ideal component to use when designing a digital signal processing unit. This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 30@10mA@5 V. Its maximum power dissipation is 200 mW. It has a maximum collector emitter voltage of 50 V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
额定电压DC 50.0 V
额定电流 100 mA
极性 NPN
耗散功率 200 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 30 @10mA, 5V
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min 55 ℃
增益带宽 250 MHz
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DDTC143XUA-7-F Diodes 美台 | 当前型号 | 当前型号 |
DDTC143XCA-7-F 美台 | 类似代替 | DDTC143XUA-7-F和DDTC143XCA-7-F的区别 |
DDTC143XE-7-F 美台 | 类似代替 | DDTC143XUA-7-F和DDTC143XE-7-F的区别 |
DDTC143XUA-7 美台 | 类似代替 | DDTC143XUA-7-F和DDTC143XUA-7的区别 |
