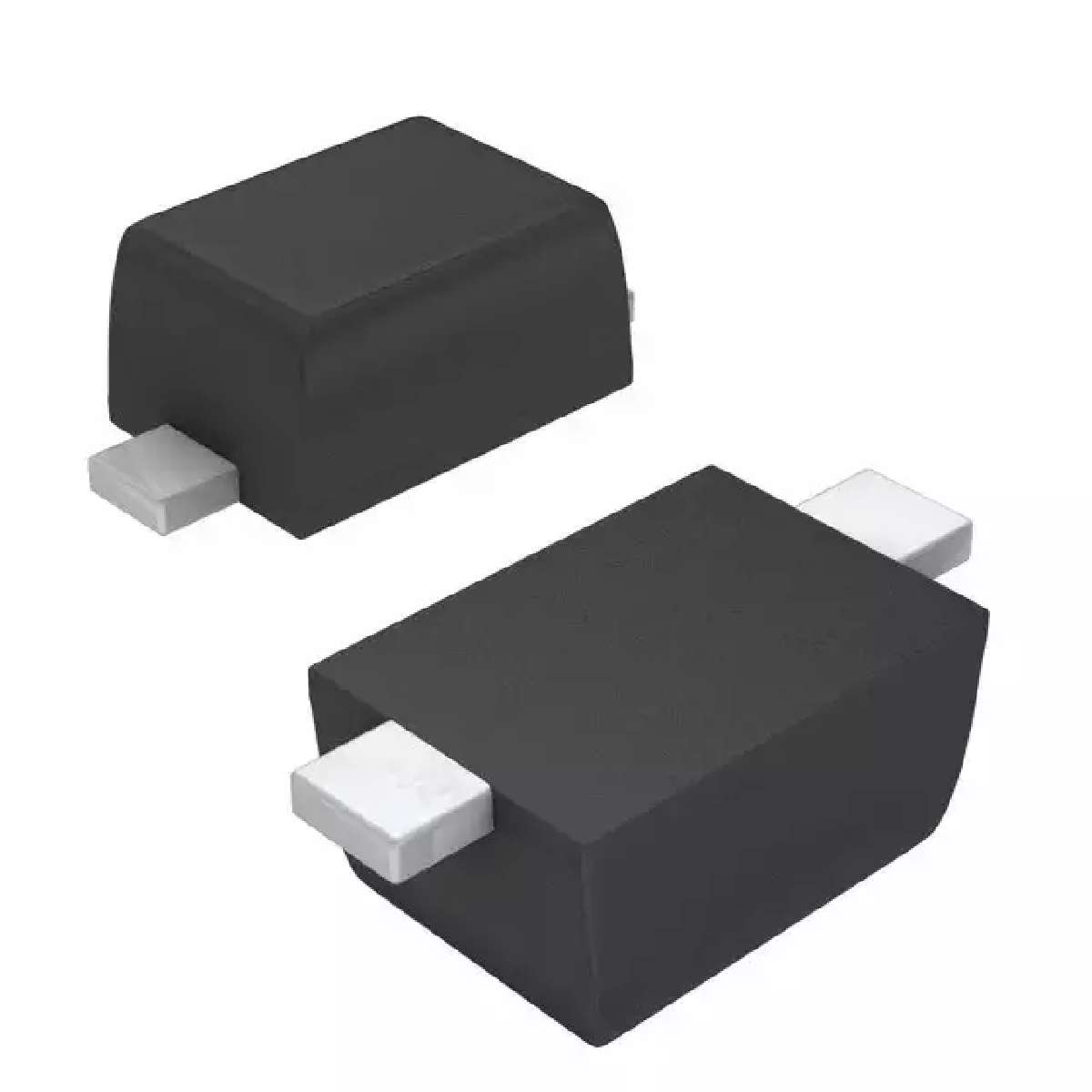

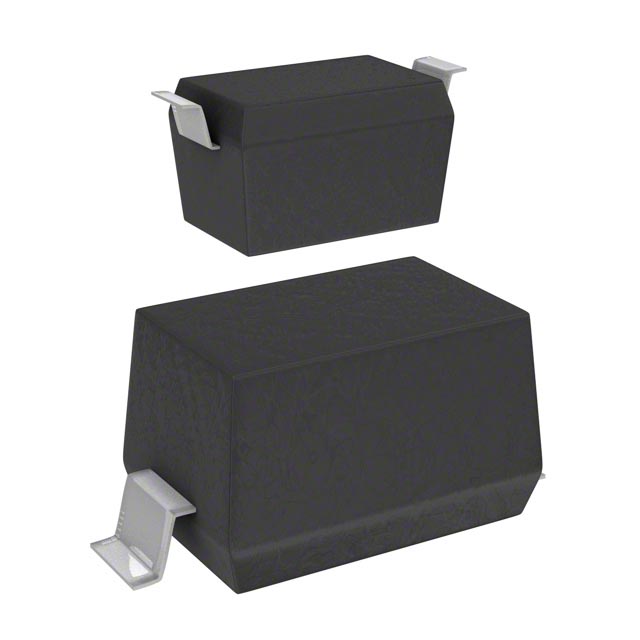

DDZ9689T-7 编带
- 齐纳 ±5% 表面贴装型 SOD-523
得捷:
DIODE ZENER 5.1V 150MW SOD523
立创商城:
5.1V 150mW
贸泽:
稳压二极管 150MW 5.1V
艾睿:
This DDZ9689T-7 zener diode from Diodes Zetex is perfect for blocking a voltage. Its maximum leakage current is 5 μA. Its test current is 0.05 mA. Its maximum power dissipation is 150 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Zener Single 5.1V 5% 150mW 2-Pin SOD-523 T/R
Chip1Stop:
Diode Zener Single 5.1V 5% 150mW 2-Pin SOD-523 T/R
Win Source:
DIODE ZENER 5.1V 150MW SOD523
容差 ±5 %
额定功率 150 mW
正向电压 900mV @10mA
耗散功率 150 mW
测试电流 0.05 mA
稳压值 5.1 V
正向电压Max 900mV @10mA
额定功率Max 150 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-523-2
长度 1.7 mm
宽度 0.9 mm
高度 0.65 mm
封装 SOD-523-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DDZ9689T-7 Diodes 美台 | 当前型号 | 当前型号 |
CMOZ5V1 Central Semiconductor | 功能相似 | DDZ9689T-7和CMOZ5V1的区别 |
CMOZ5L1 Central Semiconductor | 功能相似 | DDZ9689T-7和CMOZ5L1的区别 |
