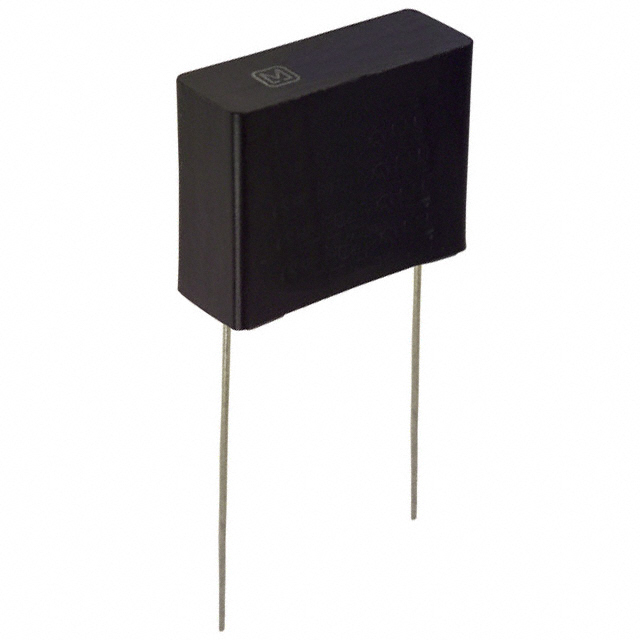

PANASONIC ELECTRONIC COMPONENTS ECQ-U2A154ML 膜电容, ECQUL系列, 0.15 µF, ± 20%, X2, 径向引线, 100 °C
The ECQUL series capacitors are compact, metalized polyester film capacitors. The capacitance value ranges from 0.001µF to 2.2µF. ECQUL series capacitors are approved by UL/CSA and European safety regulation class X2 or class Y2/X2. These capacitors are preferred for applications such as interference suppressors.
- .
- Rated voltage of 250VAC UL/CSA
- .
- Available in ±10% and ±20% tolerance
- .
- UL60384-14, CAN/CSA E60384-14, CSA C22.2 No.8-M1986, EN60384-14, IEC60384-14 approved
- .
- Flame retardant plastic case and non combustible resin
- .
- Operating temperature range -40°C to 100°C
额定电压DC 909 mV
额定电压AC 275 V
电容 0.15 µF
容差 ±20 %
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 15 mm
长度 17.5 mm
宽度 6.5 mm
高度 14.5 mm
脚长度 20 mm
封装 Radial, Box
引脚间距 15 mm
介质材料 Polyester
工作温度 -40℃ ~ 100℃
产品生命周期 Unknown
包装方式 Bag
制造应用 工业, EMI，RFI 抑制, Industrial, Portable Devices, 电源管理, 便携式器材, Consumer Electronics, Portable Devices, Power Management, , Power Management, 消费电子产品, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532250010
