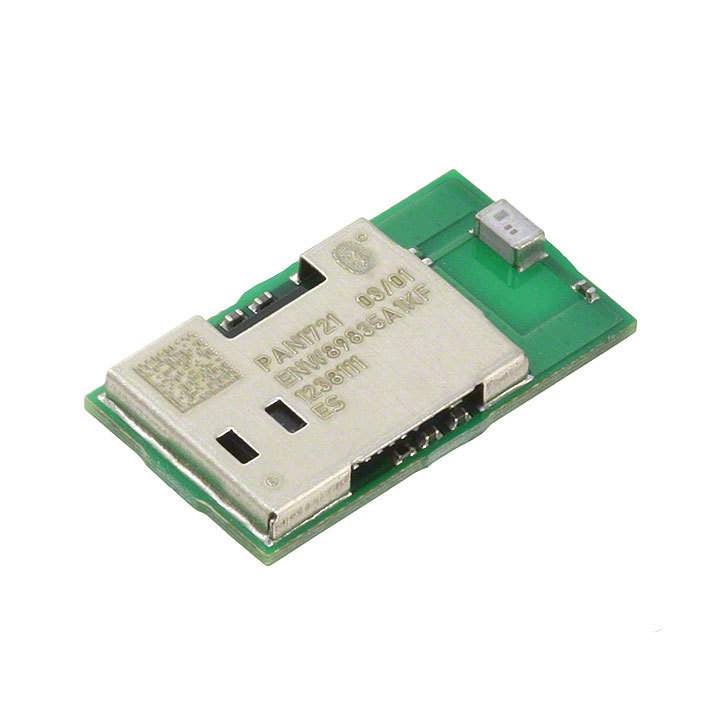

ENW-89835A1KF

PANASONIC ELECTRONIC COMPONENTS  ENW-89835A1KF  射频模块, 收发器, 蓝牙, CC2541, 2.4GHZ

The PAN1721 is a cost-effective, ultra low-power, system-on-chip SoC for Bluetooth Low Energy applications. The module includes an eight channel, twelve bit analogue-to-digital converter, 19 GPIOs plus battery and temperature sensors. A single device for both BLE master or slave nodes. The PAN1721 combines an excellent RF transceiver with a high performance low power 8051 microcontroller, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The PAN1721 is an ideal choice for applications where battery life is a critical application requirement, using only 500 nA in sleep mode. Short transition times between operating modes-3 uS Wake-Up - and power efficient hardware further reduce current consumption.

.

Supports user developed applications

.

256K Flash, 8K RAM

.

Supports 1 Mbps data rate

.

Eight Channel 12-Bit ADC

.

19 GPIOs

.

Battery Monitor and Temperature Sensor

.

Certifications: Bluetooth, FCC, IC and CE

.

Texas Instruments Stack
