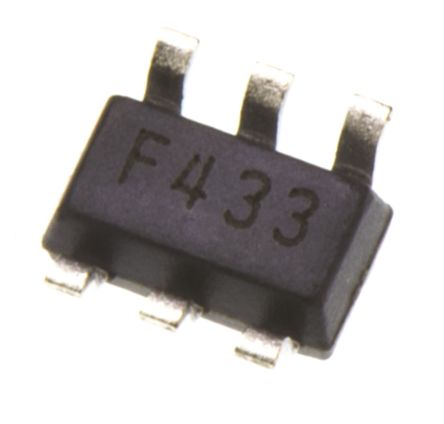

STMICROELECTRONICS ESDA6V1SC6 静电保护装置, 排列, SOT-23, 6 引脚, 6.1 V, 400 W
Transil™ 阵列单向,提供 ESD 保护,ESDA 系列,STMicroelectronics
### 瞬态电压抑制器,STMicroelectronics
欧时:
### Transil™ 阵列单向,提供 ESD 保护,ESDA 系列,STMicroelectronics### 瞬态电压抑制器,STMicroelectronics
得捷:
TVS DIODE 5.25VWM SOT23-6
立创商城:
ESDA6V1SC6
贸泽:
ESD Suppressors / TVS Diodes 6.1V 400W Unidirect
e络盟:
静电保护装置, 排列, SOT-23, 6 引脚, 5.3 V, 400 W, ESDA6 Series
艾睿:
This tvs ESDA6V1SC6 ESD protection device from STMicroelectronics, will prevent from a costly fix if your system is to be hit with electrostatic discharge. This ESD diode has a maximum ESD protection device voltage of 25@Air Gap/25@Contact Disc kV. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its capacitance value is 190Typ pF. It is made in a quad common anode configuration.
安富利:
ESD Suppressor TVS 25KV 6-Pin SOT-23 T/R
Chip1Stop:
ESD Suppressor TVS 25kV Automotive 6-Pin SOT-23 T/R
TME:
Diode: Transil array; 6.1V; common anode; 300W; SOT23-6
Verical:
ESD Suppressor Diode TVS Uni-Dir 5.25V 6-Pin SOT-23 T/R
Newark:
# STMICROELECTRONICS ESDA6V1SC6 ESD Protection Device, Transil, SOT-23, 6 Pins, 1.25 V, 400 W
儒卓力:
**ARRAY 5V SOT23-6L 4-LINE **
Win Source:
TVS DIODE 5.25VWM SOT23-6
额定电压DC 6.10 V
工作电压 5.3 V
电容 190 pF
额定功率 400 W
击穿电压 6.1 V
电路数 4
通道数 4
针脚数 6
耗散功率 400 W
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 6.1 V
击穿电压 6.1 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-6
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 通用, Consumer Electronics, 消费电子产品, Communications & Networking, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ESDA6V1SC6 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
ESDA6V1SC6Y 意法半导体 | 类似代替 | ESDA6V1SC6和ESDA6V1SC6Y的区别 |
MMQA12VT1G 安森美 | 功能相似 | ESDA6V1SC6和MMQA12VT1G的区别 |
MMQA33VT1G 安森美 | 功能相似 | ESDA6V1SC6和MMQA33VT1G的区别 |
