EXB-V8V3R3JV

Res Thick Film Array 3.3Ω 5% ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R

3.3 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络，阵列 ±200ppm/°C 1206（3216 公制），凹面，长边端子

得捷:
RES ARRAY 4 RES 3.3 OHM 1206

艾睿:

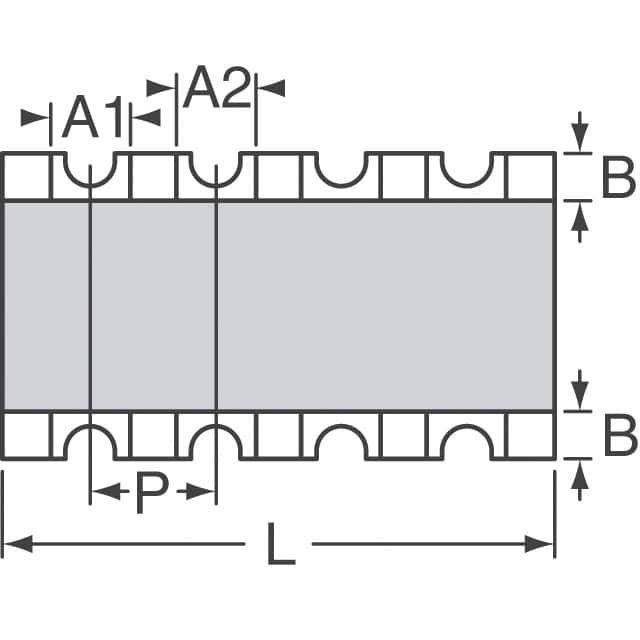

By combining multiple resistors into a single chip, the EXB-V8V3R3JV resistor array, developed by Panasonic, can help you save space and power in your circuit design. This product&s;s 4 resistors have a value of 3.3 Ohm. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The EXB-V8V3R3JV part has a concave termination style. This product&s;s terminal pitch is 0.8 mm. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 5%. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C.

Electro Sonic:
Res Thick Film Array 3.3 Ohm 5% -200ppm/°C to 600ppm/°C ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R
