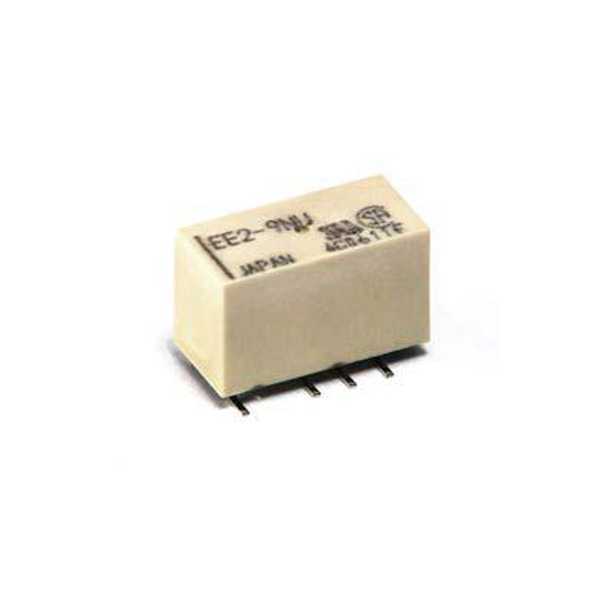

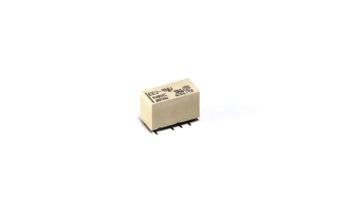

KEMET EE2-3TNUH-L 信号继电器, EE2系列, DPDT, 3 VDC, 2 A, SMD, 闭锁双线圈
The KEMET EC2/EE2 miniature signal relays offer a compact case size in a slim package. Minimal board space is consumed with either a through-hole or surface mount configuration. These relays are recognized by UL and CSA, while also being compliant with Part 68 of the FCC’s 1,500 V surge capacity.
* Low power consumption less than 200 mW
* Compact and lightweight
* Low magnetic interference
* Tube or embossed tape and reel packaging
* UL recognized E73266 and CSA certified LR46266
* Surface mount and through-hole options
* High Breakdown Voltage NKX type can withstand 1.5 kVAC at open contacts
额定电压DC 220 V
额定电压AC 250 V
额定电流 2 A
触点类型 DPDT
功耗 140 mW
触点额定电流 2 A
线圈电压 3 VDC
线圈电流 46.65 mA
线圈电阻 64.3 Ω
额定电流Max 2 A
线圈电压DC 3 V
线圈功率 140 mW
额定功率Max 60W, 125VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 VAC
额定电压DC Max 220 V
额定电压AC Max 250 V
安装方式 Surface Mount
引脚数 10
封装 SMD
长度 15 mm
宽度 7.5 mm
高度 10 mm
封装 SMD
触点材质 Silver Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 New Product
包装方式 Tape & Reel TR
制造应用 Signal Processing, Industrial, 工业, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
