低信号继电器 - PCB 5V 10uA Relay Signal 2formC

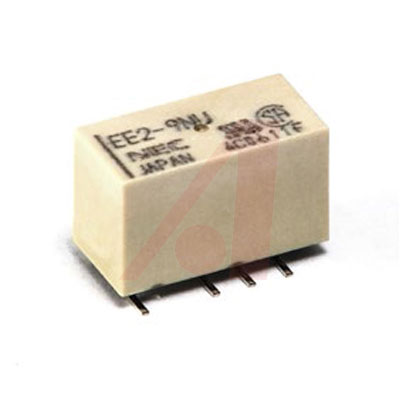

The KEMET EC2/EE2 miniature signal relays offer a compact case size in a slim package. Minimal board space is consumed with either a through-hole or surface mount configuration. These relays are recognized by UL and CSA, while also being compliant with Part 68 of the FCC’s 1,500 V surge capacity.
* Low power consumption less than 200 mW
* Compact and lightweight
* Low magnetic interference
* Tube or embossed tape and reel packaging
* UL recognized E73266 and CSA certified LR46266
* Surface mount and through-hole options
* High Breakdown Voltage NKX type can withstand 1.5 kVAC at open contacts
额定电压DC 220 V
额定电压AC 250 V
额定电流 2 A
绝缘电阻 1000 MΩ
功耗 140 mW
触点额定电流 2 A
线圈电压 5 VDC
线圈电流 28 mA
线圈电阻 178 Ω
额定电流Max 2 A
线圈电压DC 5 V
线圈功率 140 mW
额定功率Max 60W, 125VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 VAC
额定电压DC Max 220 V
额定电压AC Max 250 V
接触电阻Max 75 mΩ
安装方式 Surface Mount
引脚数 8
封装 -
长度 15 mm
宽度 7.5 mm
高度 10 mm
封装 -
触点材质 Silver, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EE2-5NU KEMET Corporation 基美 | 当前型号 | 当前型号 |
EE2-5ND 基美 | 功能相似 | EE2-5NU和EE2-5ND的区别 |
