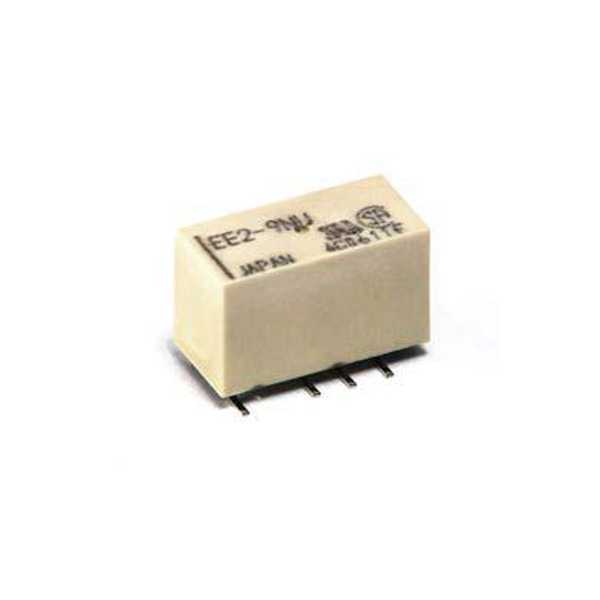

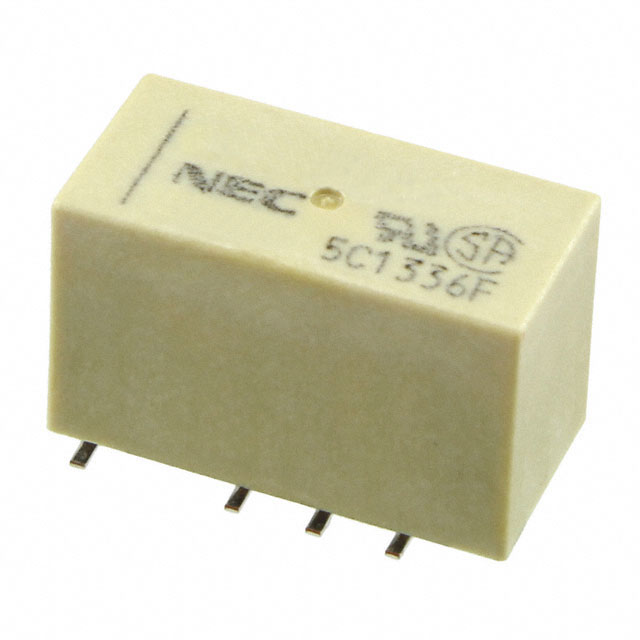

KEMET EE2-12SNUH-L 信号继电器, EE2系列, DPDT, 12 VDC, 2 A, SMD, 锁定式单线圈
The EE2 series Miniature Signal Relay with compact and light weight. It has FCC 1500V and Telcordia 2500V surge capacity. It offers ND type high insulation conform to supplement insulation for EN60950 and NKX type high breakdown voltage can withstand 1.5kVAC at open contacts.
- .
- Low power consumption 100 to 200mW
得捷:
RELAY GEN PURPOSE DPDT 2A 12VDC
立创商城:
12VDC 2A 锁存,单线圈
e络盟:
信号继电器, 12 VDC, DPDT, 2 A, EE2 系列, SMD, 锁定式单线圈
艾睿:
Signal Relay 12VDC 2A DPDT15x7.5x10mm SMD
Allied Electronics:
Relay; E-Mech; Latching; DPDT; Ctrl-V 12DC; 2A; 250VAC; PCB Mount; SMD; EC2/EE2 Series
安富利:
Electromechanical Relay DPDT 2A 12VDC 1.44KOhm Surface Mount
Verical:
Electromechanical Relay 12VDC 1.44KOhm 2A DPDT 15x7.5x10mm SMD Signal Relay
Newark:
# KEMET EE2-12SNUH-L Signal Relay, EE2 Series, Latching Single Coil, DPDT, SMD, 2 A, 12 VDC
额定电压DC 220 V
额定电压AC 250 V
额定电流 2 A
绝缘电阻 1000 MΩ
触点类型 DPDT
功耗 100 mW
触点额定电流 2 A
线圈电压 12 VDC
线圈电流 8.33 mA
线圈电阻 1.44 kΩ
额定电流Max 2 A
线圈电压DC 12 V
线圈功率 100 mW
额定功率Max 60W, 125VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 VAC
额定电压DC Max 220 V
额定电压AC Max 250 V
接触电阻Max 75 mΩ
安装方式 Surface Mount
引脚数 8
封装 DIP
长度 15 mm
宽度 7.5 mm
高度 10 mm
封装 DIP
触点材质 Silver Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 New Product
包装方式 Tape & Reel TR
制造应用 信号处理, Industrial, Signal Processing, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
