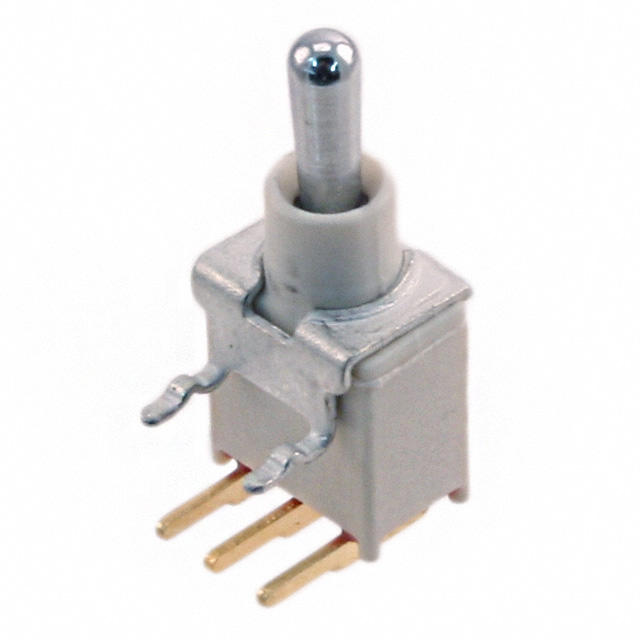

Switch Toggle Mom OFF Mom SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
The sealed toggle switch from C&K Components is a simple way to power on and off various components of your application. It has a SPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The ET05MD1ABE toggle switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 6.32 mm tall.
触点电镀 Gold over Nickel
额定电压DC 20 V
额定电压AC 20 V
绝缘电阻 1.00 GΩ
排数 1
易燃性等级 UL 94 V-0
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 6.32 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ET05MD1ABE C&K Components | 当前型号 | 当前型号 |
TL37W000050 Apem Components | 功能相似 | ET05MD1ABE和TL37W000050的区别 |
B18JH 日本长野 | 功能相似 | ET05MD1ABE和B18JH的区别 |
A18JH-RO 日本长野 | 功能相似 | ET05MD1ABE和A18JH-RO的区别 |
