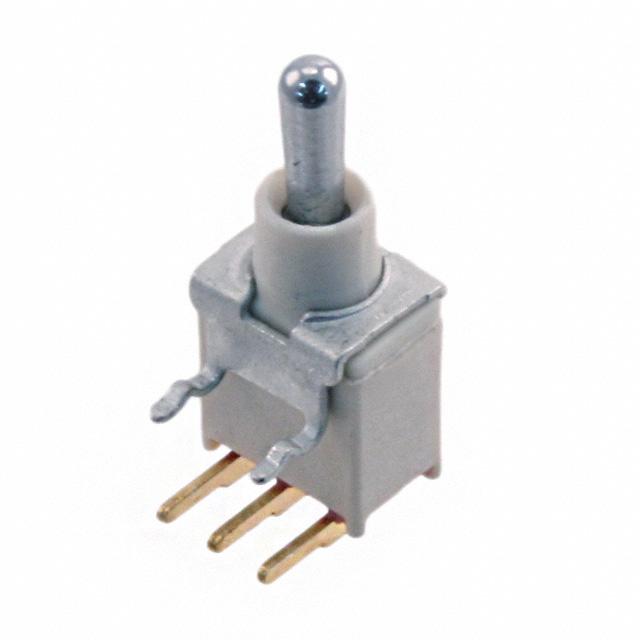

C & K COMPONENTS ET03MD1ABE 拨动开关, ET系列, 不发光, SPDT, 开-关-开, 通孔安装
The ET series sealed Miniature Toggle Switch used for protection against harmful dust deposit, full-scale voltage protection and temporary immersion. It has sealed against solder and cleaning process contaminants. It is process sealed to withstand machine soldering temperatures and pressure wash cleaning methods.
- .
- Compact size and small footprint save PCB space
- .
- ESD protection available
- .
- Thru-hole and surface mount models
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
排数 1
额定功率 0.4 VA
触点类型 SPDT
接触电阻 10.0 mΩ
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 6.32 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 医用, 传感与仪器, 工业, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
