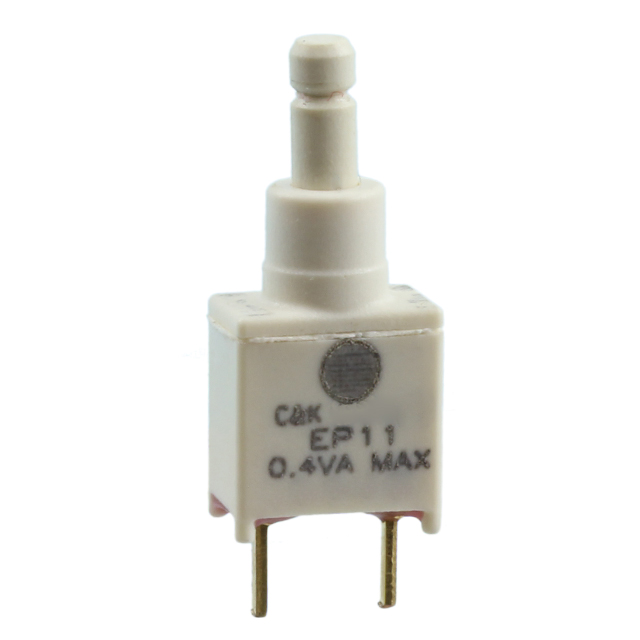

C & K COMPONENTS EP11RD1CBE 按钮开关, SPST, 瞬时式弹簧复位, 20 V, 20 V, 通孔
Easily reset the current state or mode using this push button switch manufactured from C&K Components. It has a SPST configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The EP11RD1CBE push switch has a PC pin termination style. This product is 8.13 mm long, 18.85 mm tall and 5.08 mm deep. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.
额定电压DC 20 V
额定电压AC 20 V
排数 1
触点类型 SPST
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 18.85 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
