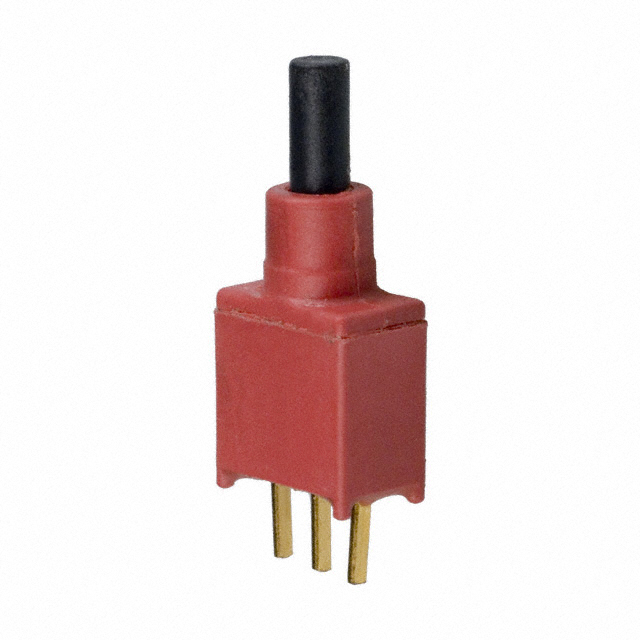

C & K COMPONENTS EP12SD1CBE 按钮开关, SPDT, 开-开, 20 V, 20 V, 通孔
The EP series sealed tiny Pushbutton with gold over nickel plated copper alloy contacts and epoxy terminal seal.
得捷:
SWITCH PUSH SPDT 0.4VA 20V
立创商城:
EP12SD1CBE
e络盟:
按钮开关, 标准, EP系列, SPDT, 开-开, 柱塞
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Allied Electronics:
Switch; P/B; Sealed; SPDT; OFF-MOM; .215 Round Plunger; 0.4A; 20VAC/VDC; PC ThruHole
安富利:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Tray
Newark:
# C & K COMPONENTS EP12SD1CBE Pushbutton Switch,STRAIGHT,SPDT,ON-ON,PC TAIL Terminal,PCB Hole Count:3
儒卓力:
**Pushbu SPDT On-MOM THT straight **
MASTER:
Sealed Tiny Pushbutton Switches
Electro Sonic:
Sealed Tiny Pushbutton Switches
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
额定电流 1 A
绝缘电阻 1000 MΩ
排数 1
额定功率 400 mW
触点类型 SPDT
针脚数 2
接触电阻 20.0 mΩ
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 20 VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
宽度 5.08 mm
高度 18.85 mm
封装 -
颜色 Red
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Not Recommended for New Design
包装方式 Tray
制造应用 通信与网络, 传感与仪器, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EP12SD1CBE C&K Components | 当前型号 | 当前型号 |
EP12SD1SAPE C&K Components | 完全替代 | EP12SD1CBE和EP12SD1SAPE的区别 |
EP12SD1V3BE C&K Components | 完全替代 | EP12SD1CBE和EP12SD1V3BE的区别 |
EP12SD1AVPE C&K Components | 完全替代 | EP12SD1CBE和EP12SD1AVPE的区别 |
